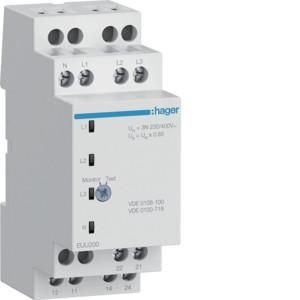

Undervoltage control relay 1P+N/3P+N 2 changeover contacts. Control and monitoring relay for undervoltage in single and three-phase networks (L+N, 3L+N). Suitable for systems with emergency power supply and safety lighting in accordance with DIN0108-0100 and DIN0100-718. Fixed switching threshold at 0.85 x Un and fixed hysteresis of 5%. With test function for simulating undervoltage triggering. Mounting on a top hat rail (DIN rail), with LED signaling.
| Property | Value |
| Type of voltage for actuation: | AC |
| Response value voltage: | 161 V |
| Number of contacts as changeover contacts: | 2 |
| Design of the electrical connection: | Screw connection |
| Min. adjustable release delay time: | 0.2 s |
| Max. permissible release delay time: | 0.2 s |
| Width: | 35 mm |
| Height: | 87 mm |
| Depth: | 65 mm |
| Voltage measuring range 1: | 161 to 299 V |
| Rated control supply voltage Us at AC 50 Hz: | 230 to 400 V |
| With removable terminals: | no |
| 1-phase undervoltage possible: | yes |
| 3-phase undervoltage possible: | yes |
| 1-phase overvoltage possible: | no |
| 3-phase overvoltage possible: | no |
| 1-phase window possible: | no |
| 3-phase window possible: | no |
| Contains DC undervoltage function: | no |
| Contains DC overvoltage function: | no |
| Contains DC voltage window function: | no |
| Type of voltage of the measuring range: | AC |
| Rated control supply voltage Us at AC 60 Hz: | 230 to 400 V |
Features
HAB
EUU200 VDE 1P+N/3P+N 2 changeover contacts
Manufacturer
HAN
EUU200
GTIN
3250615600585
Number of contacts as changeover
2
Design of the electrical connection
Screw connection
Rated control supply voltage Us at AC 50 Hz
230 to 400 V
Rated control supply voltage Us at AC 60 Hz
230 to 400 V
Width
35 mm
Height
87 mm
With removable clamps
No
Voltage type for actuation
AC
Depth
65 mm
