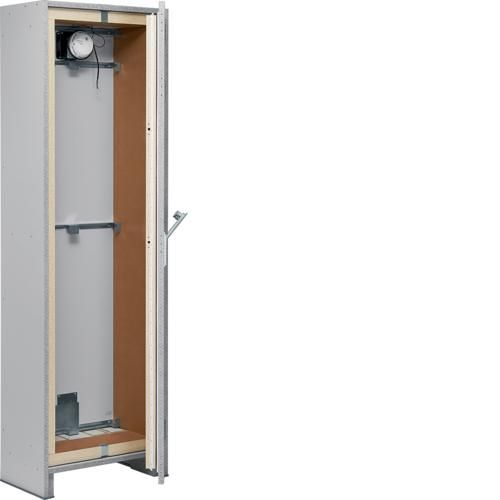

Fire protection cabinet, universal, 598 x 648 x 349 mm, 30 minutes. Electrical fire protection wall cabinet F30 for mounting on the wall to secure escape and rescue routes (fire load insulation), prepared for setting up a low-voltage distribution system up to 630A. Suitable for maintaining the functionality of safety systems in the event of a fire for over 30 minutes. The housing is made of non-flammable building material of class A2 - s1, d0, IP44, protection class II, color similar to RAL7035 and cable entries at the top/bottom. General building approval (DIBt): Z-86.1-86. Wall cabinet consisting of empty housing, fastening straps and fastening material. One or two doors that close into the body with door stop that can be changed to the right or left, opening angle 180°. Door with swivel lever, door lock via push rod with 2-point locking and with DIN half cylinder double bit, replaceable, door hinges made of stainless steel. Rear wall with active ventilation system 230V AC cold smoke-tight, switches off automatically in the event of fire via smoke detector and automatically foaming fire protection seal (all around). The housing can be provided with various surfaces (decor/varnish/veneer/metal) by the manufacturer.
| Property | Value |
| Height: | 598 mm |
| Width: | 648 mm |
| Depth: | 349 mm |
| Inner depth: | 240 mm |
| Protection type (IP): | IP44 |
| Protection class: | II |
| Impact resistance: | IK10 |
| Housing material: | Plastic |
| RAL number: | 7035 |
| Mounting type: | Surface-mounted |
| Suitable for outdoor use: | no |
| Surface: | painted |
| Mounting option: | no |
| With mounting plate: | no |
| Number of cable entries: | 2 |
| Number of modules: | 72 |
| Number of openings for flange plates: | 4 |
| Number of rows: | 3 |
| Type of cover: | Door |
| Type of door: | Single |
| Cover design: | closed |
| Width in division units: | 24 |
| Functional integrity: | E 30 |
| Material thickness housing: | 70 mm |
| Material thickness door/cover: | 22 mm |
| With lock: | yes |
| Rated current (In): | 250 A |
| Transparent cover/door: | no |
| Color: | gray |
