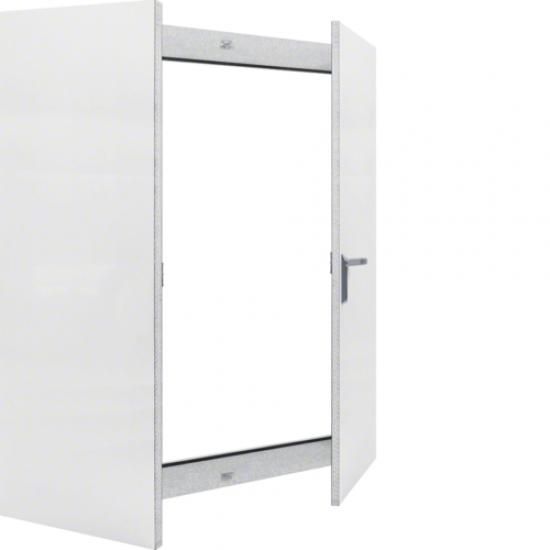

Fire protection wall-mounted door, universal, 30min, 1495x1295x51mm, IP42. Electrical wall-mounted door F30/I30 for full-surface wall mounting on solid walls to secure escape and rescue routes. Tests: Fire chamber test was carried out at an official materials testing institute. Suitable for small to large-format partitioning of electrical wall-mounted distributors in escape routes, as well as for revisable partitioning of installation shafts in accordance with MLAR and MBO. Building materials comply with the requirements of classification A2-s1 d0 of DIN EN 13501-1. General building authority approvals (DIBt): Fire resistance class corresponding to a fire resistance period in accordance with DIN 4102-2 (F30) and based on DIN 4102-11 (I30). Wall-mounted doors made of non-flammable fire protection panels in accordance with DIN 4102-1 consisting of a compensation frame with approved fastening materials directly on the wall and door. Single or double door with DIN right-hand stop and 180° opening angle. Door with swivel lever, door lock via push rod with 2-point locking and prepared for DIN half cylinder. All-round smoke and fire protection seals with self-foaming in the event of a fire. Notes: Additional compensation frames possible. The housing can be provided with various surfaces (decor/varnish/veneer/metal) by the manufacturer.
| Property | Value |
| Design: | hinged door |
| Design as a glazed door: | no |
| Design as a door for circuit breaker locking: | no |
| Surface design: | painted |
| Color: | white |
| Height: | 1495 mm |
| Width: | 1295 mm |
| Material: | other |
| EMC version: | no |
| Depth: | 51 mm |
| Protection class (IP): | IP42 |
