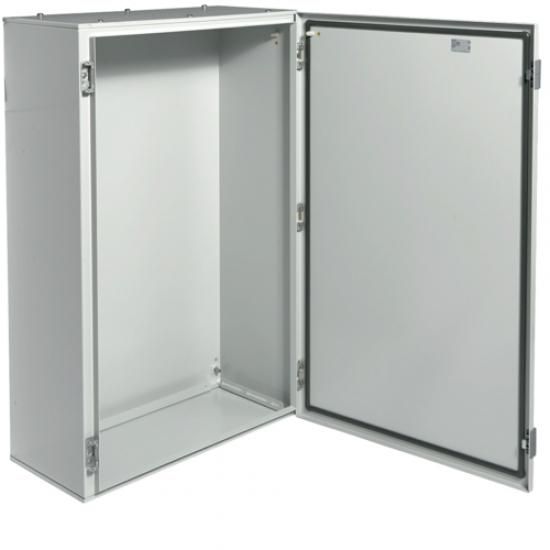

Orion cabinet, sheet steel, protection class I, 950X600X300mm. Empty housing made of sheet steel, for mounting plate, suitable for the manufacture of switchgear assemblies in accordance with EN 61439-1/3,0660 Part 500/504. Protection class IP 65 in accordance with IEC 529. For installation of devices on galvanized or insulated mounting plate. This wall-mounted distributor is suitable for installation indoors and in aggressive ambient conditions and high mechanical stress. Consists of a lower section without pre-punching for cable entry. Surface-mounted door with foamed-in seal and one or two locks with 3mm double-bit insert, can be replaced with other locks. Door hinge on the right.
| Property | Value |
| Height: | 950 mm |
| Width: | 600 mm |
| Depth: | 300 mm |
| Inner depth: | 295 mm |
| Protection type (IP): | IP65 |
| Protection class: | I |
| Impact resistance: | IK10 |
| Material of the housing: | Steel |
| RAL number: | 7035 |
| Mounting type: | Surface-mounted |
| Suitable for outdoor use: | no |
| Surface: | powder-coated |
| Suitable for lightning protection: | no |
| Mounting option: | yes |
| With mounting plate: | no |
| Number of cable entries: | 2 |
| Number of modules: | 156 |
| Number of openings for flange plates: | 2 |
| Number of rows: | 6 |
| Type of cover: | Door |
| Type of door: | Single |
| Cover design: | closed |
| Width in division units: | 26 |
| Functional integrity: | without |
| Material thickness of housing: | 2 mm |
| Material thickness of door/cover: | 21.5 mm |
| With lock: | yes |
| Rated current (In): | 630 A |
| Transparent cover/door: | no |
| Color: | gray |
Features
Manufacturer
HAN
FL126A
GTIN
3250610674123
Cultivation option
Yes
Number of cable entries
2
Number of modules
156
Number of rows
6
Number of openings for flange plates
2
Type of cover
Door
Type of door
Singles
Cover design
Closed
Width
600 mm
Width in pitch units
26
Color
Functional preservation
Without
Suitable for outdoor use
No
Suitable for lightning protection
No
Height
950 mm
Internal depth
295 mm
Housing material thickness
2 mm
Material thickness door/lid
21.5 mm
With mounting plate
No
With lock
Yes
Mounting type
Surface-mounted
Nominal current (In)
630A
Surface
Powder coated
RAL number
7035
Impact resistance
IK10
IP protection)
IP65
Protection class
I
Depth
300 mm
Transparent lid/door
No
Housing material
Steel
