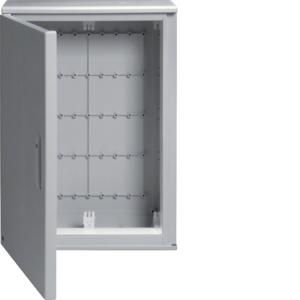

Hager FL52S empty cabinet IP65 SKII 600x850x300

Description

Features

Reviews

Wall cabinet, univers, IP65, SK II, 850 x 600 x 300mm, polyester. Wall-mounted cabinet for indoor installation with VDE certificate (production monitoring) according to DIN EN 61439-1/-3 and dimensional standard DIN 43870, for surface mounting. For setting up a low-voltage distribution system up to 630 A, 3AC 690 V 50 Hz. Protection type IP65, protection class II, air and creepage distances according to DIN0110-1/-2. Consists of cabinet with door made of glass fiber reinforced polyester, UV-resistant, door seal foamed all around, temperature-resistant and oil-resistant. Note: Door lock can be replaced with other locks. Additional requirements must be observed for outdoor installation.

Property	Value
Height:	850 mm
Width:	600 mm
Depth:	300 mm
Installation depth:	300 mm
Inner depth:	235 mm
Protection rating (IP):	IP65
Protection class:	II
Impact resistance:	IK10
Housing material:	Plastic
RAL number:	7035
Mounting type:	Surface-mounted
Suitable for outdoor use:	yes
Surface:	other
Suitable for lightning protection:	yes
Mounting option:	no
With mounting plate:	no
Number of modules:	120
Number of rows:	5
Type of cover:	Door
Type of door:	Single
Cover design:	closed
Width in division units:	24
Functional integrity:	without
Material thickness Housing:	2 mm
Material thickness door/cover:	2 mm
With lock:	yes
Rated current (In):	630 A
Transparent cover/door:	no
Color:	gray
