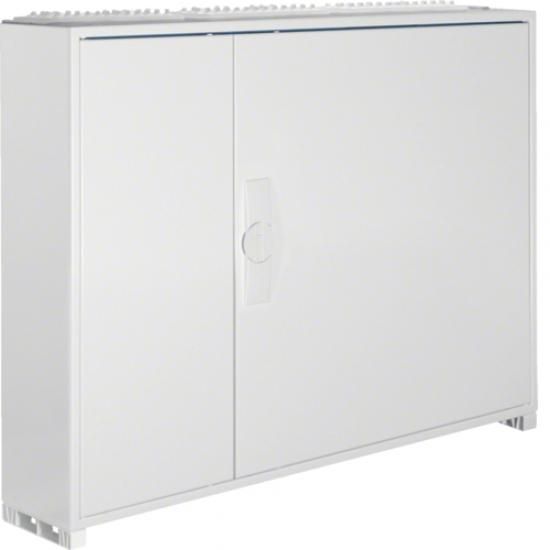

Field distributor AP, univers, IP44, SKII, 144PLE, 3x4 rows, 650x800x161mm, without terminal. Field distributor AP validated according to DIN EN 61 439-1/-3, dimensional standard according to DIN 43 870. For installation for devices up to 125 A, air and creepage distances according to 0110/1-2. Consists of cabinet with door made of powder-coated and baked sheet steel. From cabinet width 800 mm (3 fields) two-door construction. Right-hand doors maximum 2 fields wide. Complete cabinet with installation kit equipped with profiled support rails, 7.5 mm high top-hat rails with 125 mm center distance and matching contact protection covers, without PE/N QuickConnect terminals and without supports. Cable entries at the top/bottom through removable, flexible plastic flange plates, which can also be replaced. Door with internal adjustable hinges and an opening angle of 110°. Doors can be hinged on the right and left, door hinges can be changed without tools. Door lock as standard with three-point bar lock and sealable folding handle. Interchangeable lockable locking systems and doors, see accessories.
| Property | Value |
| Width in division units: | 12 |
| Number of rows: | 12 |
| Height: | 650 mm |
| Width: | 800 mm |
| Depth: | 165 mm |
| Protection class (IP): | IP44 |
| Color: | white |
| Mounting type: | Surface-mounted |
| With lock: | no |
| Transparent cover/door: | no |
| Housing material: | Steel |
| RAL number: | 9010 |
| DIN rail: | yes |
| Mounting option: | yes |
| With mounting plate: | no |
| Type of cover: | door |
| Cover design: | closed |
| Inner depth: | 156 mm |
| Type of closure: | other |
