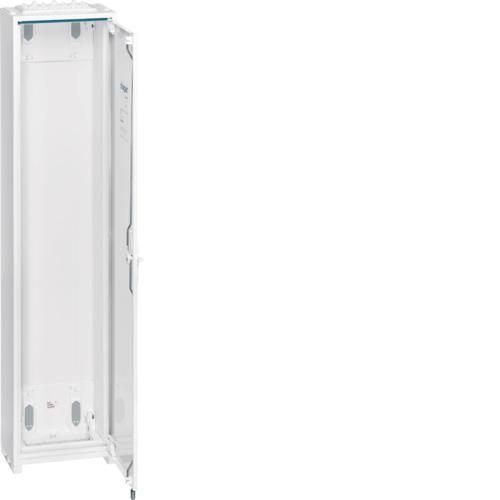

Field distributor AP, univ., IP44, SKII, 96PLE, 1x8 rows 1250x300x161mm, empty with door. Field distributor in accordance with DIN EN 61 439-1/-3, dimensional standard in accordance with DIN 43 870. For installation of devices up to 125 A, air and creepage distances in accordance with DIN EN 60664-1. Consisting of cabinet with door made of powder-coated and baked-on sheet steel. Two-door construction for cabinet widths of 800 mm and over (3-field). Right-hand doors maximum 2-field wide. Empty cabinet without installation kit. Cable entries at the top/bottom through removable, flexible plastic flange plates, also replaceable. Door with internal adjustable hinges and an opening angle of 110°. Doors can be hinged on the right and left, door hinge can be changed without tools. Door lock as standard with three-point bar lock and sealable folding handle. Replaceable lockable locking systems and doors, see accessories.
| Property | Value |
| Height: | 1250 mm |
| Width: | 300 mm |
| Depth: | 165 mm |
| Inner depth: | 156 mm |
| Protection type (IP): | IP44 |
| Protection class: | II |
| Impact resistance: | IK09 |
| Material of the housing: | steel |
| RAL number: | 9010 |
| Mounting type: | other |
| Suitable for outdoor use: | no |
| Surface: | powder-coated |
| Suitable for lightning protection: | no |
| Mounting option: | yes |
| With mounting plate: | no |
| Number of cable entries: | 4 |
| Number of modules: | 12 |
| Number of openings for flange plates: | 2 |
| Number of rows: | 8 |
| Type of cover: | Door |
| Type of door: | without |
| Cover design: | closed |
| Width in division units: | 12 |
| Functional integrity: | without |
| Material thickness housing: | 1 mm |
| Material thickness door/cover: | 1 mm |
| With lock: | no |
| Rated current (In): | 125 A |
| Transparent cover/door: | no |
| Color: | white |
