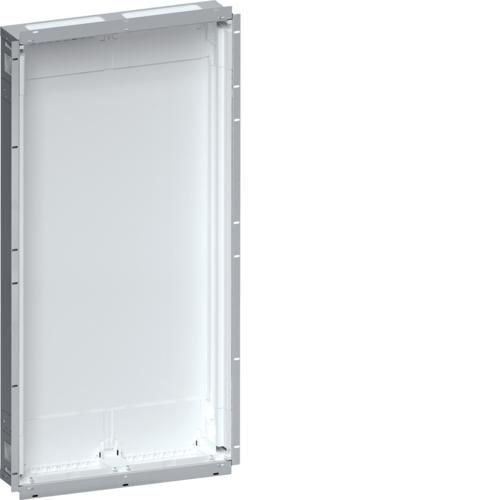

Wall box 168PLE, empty, without BR and door, SKII, niche dimensions 1107x565x115mm. Field distributor UP/HW certified according to DIN EN 61 439-1/-3, dimension standard according to DIN 43 870. For installation of devices up to 125 A, air and creepage distances according to DIN EN 60664-1, protection class IP30. Consists of cabinet, without cover frame and sheet steel door, prepared for the interior fitting of the univers FW support frame and contact protection covers. Cable entries at the top/bottom through removable plastic flange plates with pre-punched holes and integrated cable strain relief. Power inlets can be knocked out at the side and rear.
| Property | Value |
| Width in division units: | 24 |
| Height: | 1153 mm |
| Width: | 603 mm |
| Depth: | 113 mm |
| Protection class (IP): | IP30 |
| Color: | white |
| Mounting type: | Hollow wall |
| With lock: | no |
| Transparent cover/door: | yes |
| Material of the housing: | steel |
| DIN rail: | yes |
| Mounting option: | yes |
| Installation depth: | 112 mm |
| With mounting plate: | no |
| Type of cover: | without |
| Cover design: | with cutout |
| Type of closure: | other |
Features
Manufacturer
HAN
FWU72L
GTIN
3250610660423
Cultivation option
Yes
Type of cover
Without
Type of closure
Other
Cover design
With cutout
Width
603 mm
Width in pitch units
24
DIN rail
Yes
Installation depth
112 mm
Color
Height
1153 mm
With mounting plate
No
With lock
No
Mounting type
Cavity wall
IP protection)
IP30
Depth
113 mm
Transparent lid/door
Yes
Housing material
Steel
