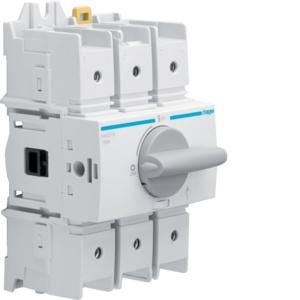

Load-disconnector 3-pole 100A for top hat rail or mounting plate. Load-disconnector for mounting on top hat rail or mounting plate, rotary drive can be locked directly on the device in the OFF state with a padlock, ensures switching on and off under load and a safety disconnection function in all low-voltage circuits,
| Property | Value |
| Number of poles: | 3 |
| Rated operating power at AC-23, 400 V: | 45 kW |
| Rated continuous current Iu: | 100 A |
| Max. Rated operating voltage Ue at AC: | 415 V |
| Emergency stop device design: | no |
| Protection class (IP), front: | IP20 |
| Main circuit connection type: | screw connection |
| Device design: | Built-in device, fixed installation technology |
| Design of the actuating element: | short rotary handle |
| Suitable for floor mounting: | yes |
| Conditional Rated short-circuit current Iq: | 25 kA |
| Integrated motor drive: | no |
| Suitable for 4-hole front mounting: | no |
| Version as maintenance/repair switch: | yes |
| Voltage release optional: | no |
| Suitable for central front mounting: | no |
| Suitable for intermediate installation: | no |
| Suitable for Distribution board installation: | yes |
| Version as main switch: | yes |
| Version as safety switch: | yes |
| Motor drive optional: | no |
| Lockable: | yes |
| Version as reversing switch: | no |
| Rated short-time withstand current Icw: | 2.75 kA |
| Color of the actuating element: | gray |
| Rated operating voltage: | 380 to 415 V |
| Switching capacity at 400 V: | 65 kW |
| Rated continuous current at AC-21, 400 V: | 100 A |
| Number of switches: | 1 |
| Rated continuous current at AC-23, 400 V: | 100 A |
| Protection class (NEMA): | other |
Features
Manufacturer
HAN
HAD310
GTIN
3250613140434
Connection type main circuit
Screw connection
Number of switches
1
Designed as main switch
Yes
Designed as an EMERGENCY STOP device
No
Designed as a safety switch
Yes
Designed as a maintenance/repair switch
Yes
Version as reversing switch
No
Design of the actuating element
Short twist grip
Conditional rated short-circuit current Iq
25kA
Rated operational power at AC-23, 400 V
45kW
Rated operating voltage
380 to 415 V
Rated continuous current Iu
100A
Rated continuous current at AC-21, 400 V
100A
Rated continuous current at AC-23, 400 V
100A
Rated short-time withstand current Icw
2.75kA
Color of the actuator
Gray
Suitable for floor mounting
Yes
Suitable for front mounting 4-hole
No
Suitable for front mounting Central
No
Suitable for distribution board installation
Yes
Suitable for intermediate construction
No
Device type
Built-in device Fixed installation technology
Max. rated operating voltage Ue at AC
415V
Motor drive integrated
No
Motor drive optional
No
Number of poles
3
Switching capacity at 400 V
65kW
Protection class (IP), front
IP20
Protection class (NEMA)
Other
Voltage release optional
No
Lockable
Yes
