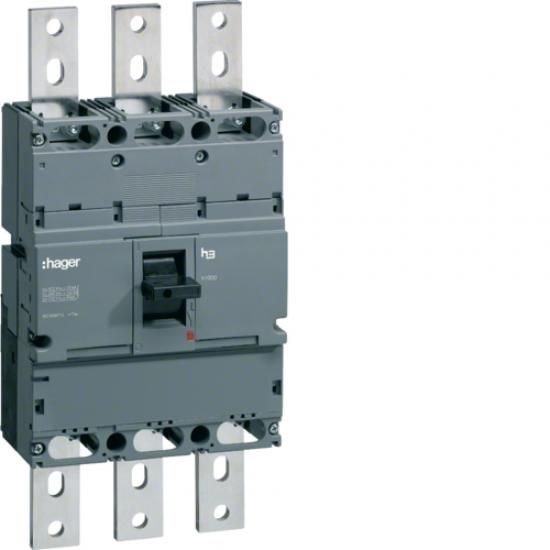

Load-break switch, size h1000, 3-pole, 800A. The load-break switch in accordance with DIN EN 60947-3, size h1000, is used to switch electrical systems and networks. The load-break switch separates the incoming side from the outgoing side in electrical systems. Mounted on a mounting plate. The three different operating states can be identified by the position of the knob (ON = top, OFF = bottom, triggered = middle position). The switches have a mechanical test button. The function of the circuit breakers can be expanded using various accessories. Including phase barriers and connection lugs.
| Property | Value |
| Number of poles: | 3 |
| Rated operating power at AC-23, 400 V: | 360 kW |
| Rated continuous current Iu: | 800 A |
| Max. Rated operating voltage Ue at AC: | 690 V |
| Design as EMERGENCY STOP device: | no |
| Protection class (IP), front: | IP40 |
| Connection type main circuit: | Cable clamp |
| Device design: | Built-in device, fixed installation technology |
| Design of the actuating element: | Toggle |
| Suitable for floor mounting: | yes |
| Motor drive integrated: | no |
| Suitable for front mounting 4-hole: | no |
| Version as maintenance/repair switch: | yes |
| Voltage release optional: | yes |
| Suitable for front mounting central: | no |
| Suitable for intermediate installation: | no |
| Suitable for distribution board installation: | yes |
| Version as main switch: | yes |
| Design as safety switch: | yes |
| Motor drive optional: | yes |
| Lockable: | yes |
| Design as reversing switch: | no |
| Rated short-time withstand current Icw: | 10 kA |
| Color of the actuating element: | black |
| Rated operating voltage: | 220 to 690 V |
| Switching capacity at 400 V: | 526 kW |
| Rated continuous current at AC-21, 400 V: | 800 A |
| Number of switches: | 1 |
| Protection class (NEMA): | other |
Features
Manufacturer
HAN
HCE800H
GTIN
3250613363178
Connection type main circuit
Cable clamp
Number of switches
1
Designed as main switch
Yes
Designed as an EMERGENCY STOP device
No
Designed as a safety switch
Yes
Designed as a maintenance/repair switch
Yes
Version as reversing switch
No
Design of the actuating element
Gag
Rated operational power at AC-23, 400 V
360kW
Rated operating voltage
220 to 690 V
Rated continuous current Iu
800A
Rated continuous current at AC-21, 400 V
800A
Rated short-time withstand current Icw
10kA
Color of the actuator
Black
Suitable for floor mounting
Yes
Suitable for front mounting 4-hole
No
Suitable for front mounting Central
No
Suitable for distribution board installation
Yes
Suitable for intermediate construction
No
Device type
Built-in device Fixed installation technology
Max. rated operating voltage Ue at AC
690V
Motor drive integrated
No
Motor drive optional
Yes
Number of poles
3
Switching capacity at 400 V
526kW
Protection class (IP), front
IP40
Protection class (NEMA)
Other
Voltage release optional
Yes
Lockable
Yes
