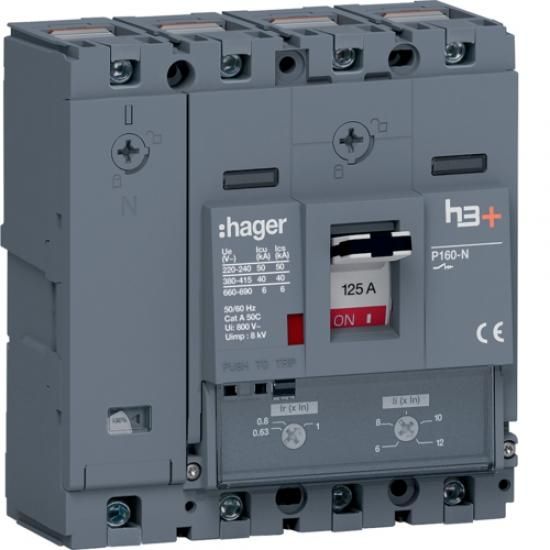

Circuit breaker h3+ P160 TM ADJ 4P4D N0-100% 125A 40kA CTC. The molded case circuit breaker in accordance with DIN EN 60947-2 protects the electrical system and networks against overload and short circuit. The thermal release for the overload current (Ir) and the magnetic release for the instantaneous short circuit current (Ii) can be set separately. The neutral conductor protection can be activated using a controller. 0% or 100% of Ir can be set. The three different operating states can be identified by the position of the knob (ON = top, OFF = bottom, triggered = middle position). A device for locking the switching state in the ON or OFF position is integrated and can be used with a standard padlock without additional accessories. The trigger mechanism can be tested and the main contacts opened using a trigger button. A hinged cover with a captive quick-release screw allows access to the installation space for optional auxiliary contacts and other triggers. Integrated accessories can be seen and identified via the viewing window without opening the hinged lid.
| Property | Value |
| Rated continuous current Iu: | 125 A |
| Type of connection for main circuit: | Screw connection |
| Number of poles: | 4 |
| Device design: | Built-in device, fixed installation technology |
| Position of connection for main circuit: | front |
| Protection class (IP): | IP40 |
| Overload release current setting: | 80 to 125 A |
| Setting range of the instantaneous short-circuit release: | 750 to 1500 A |
| Rated voltage: | 220 to 690 V |
| Rated short-circuit breaking current Icu at 400 V, 50 Hz: | 40 kA |
| Suitable for DIN rail mounting: | no |
| Design of the actuating element: | toggle |
| Integrated earth fault protection: | no |
| Motor drive integrated: | no |
| Motor drive optional: | no |
| With trip detector: | yes |
| Complete device with protection unit: | yes |
| DIN rail mounting optional: | yes |
