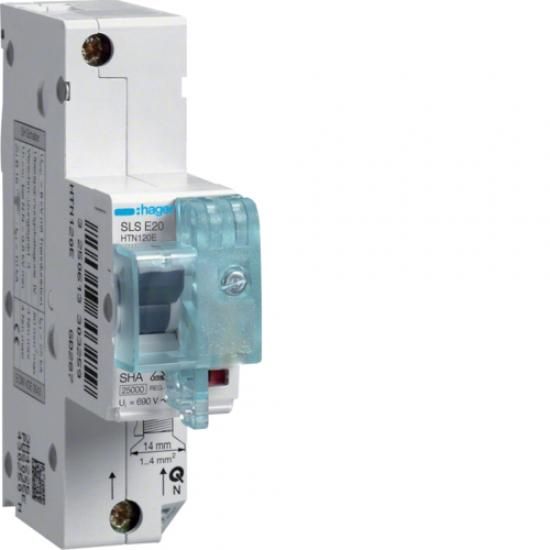

SLS switch 1-pole E characteristic 20A for top hat rail mounting. SH switch according to DIN0641-21 and dimensional standard DIN 43880 size 2. SLS in 1- or 3-pole design, single-pole switching, with separate contact position indicator. For direct mounting on top hat rail. The standard (no suggestions) enables the following locks: for the customer to prevent accidental or deliberate switching, for the installer with a padlock when working in the system, for the DNB with a sealing wire, padlock or special key.
| Property | Value |
| Number of poles: | 1 |
| Rated current: | 20 A |
| Rated voltage: | 400 V |
| Tripping characteristic: | E |
| Protection class (IP): | IP20 |
| Mounting type: | DIN rail |
| Rated insulation voltage Ui: | 690 V |
| Frequency: | 50 Hz |
| Pollution level: | 3 |
| Rated breaking capacity: | 25 kA |
| Rated impulse withstand voltage: | 6 kV |
| Overvoltage category: | 4 |
| Switching neutral conductor: | no |
Features
Rated breaking capacity
25 kA
Manufacturer
HAN
HTN120E
GTIN
3250613303228
Trigger characteristics
E
Rated insulation voltage Ui
690V
Rated voltage
400V
Rated current
20A
Frequency
50Hz
Switching neutral conductor
No
Mounting type
DIN rail
Number of poles
1
IP protection)
IP20
Degree of contamination
3
Overvoltage category
4
