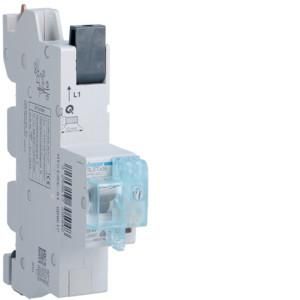

SLS switch 1 pole Cs characteristic 35A for busbar QuickConnect L2. SH switch according to DIN0641-21 and dimensional standard DIN 43880 size 6. SLS in different pole design, single pole switching, with separate contact position indicator. Plug-in contact for direct busbar mounting. The standard multifunctional lock enables the following locking: for the customer to prevent accidental or deliberate switching, for the installer with a padlock when working in the system, for the DNB with a sealing wire, padlock or special key.
| Property | Value |
| Number of poles: | 1 |
| Rated current: | 35 A |
| Rated voltage: | 400 V |
| Triggering characteristics: | Cs |
| Protection class (IP): | IP20 |
| Mounting type: | Busbar |
| Rated insulation voltage Ui: | 690 V |
| Frequency: | 50 Hz |
| Pollution degree: | 3 |
| Rated breaking capacity: | 25 kA |
| Rated impulse withstand voltage: | 6 kV |
| Overvoltage category: | 4 |
| Switching neutral conductor: | no |
Features
Rated breaking capacity
25 kA
Manufacturer
HAN
HTS135C2
GTIN
3250613305727
Trigger characteristics
Cs
Rated insulation voltage Ui
690V
Rated voltage
400V
Rated current
35A
Frequency
50Hz
Switching neutral conductor
No
Mounting type
Busbar
Number of poles
1
IP protection)
IP20
Degree of contamination
3
Overvoltage category
4
