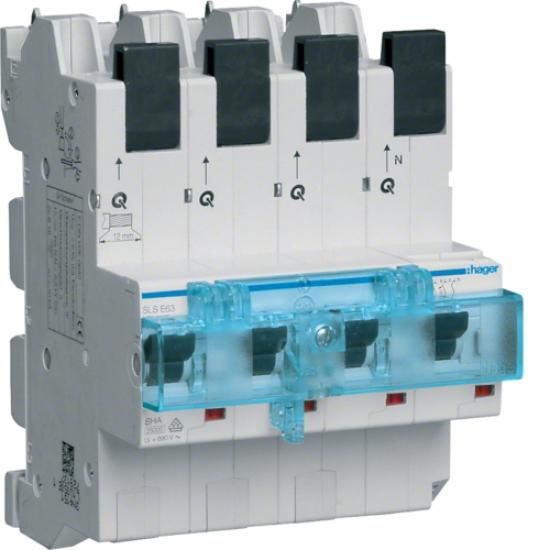

SLS switch 4-pole 3P+N E characteristic 63A for QuickConnect busbar. SH switch according to DIN0641-21 and dimensional standard DIN 43880 size 6. SLS in different pole design, single pole switching, with separate contact position indicator. Plug-in contact for direct busbar mounting. The standard multifunctional lock enables the following locking: for the customer to prevent accidental or deliberate switching, for the installer with a padlock when working in the system, for the DNB with a sealing wire, padlock or special key.
| Property | Value |
| Number of poles: | 4 |
| Rated current: | 63 A |
| Rated voltage: | 400 V |
| Triggering characteristic: | E |
| Protection class (IP): | IP20 |
| Mounting type: | Busbar |
| Rated insulation voltage Ui: | 690 V |
| Frequency: | 50 Hz |
| Pollution level: | 3 |
| Rated breaking capacity: | 25 kA |
| Rated impulse withstand voltage: | 6 kV |
| Overvoltage category: | 4 |
| Switching neutral conductor: | yes |
Features
Rated breaking capacity
25 kA
Manufacturer
HAN
HTS663E
GTIN
3250613304607
Trigger characteristics
E
Rated insulation voltage Ui
690V
Rated voltage
400V
Rated current
63 A
Frequency
50Hz
Switching neutral conductor
Yes
Mounting type
Busbar
Number of poles
4
IP protection)
IP20
Degree of contamination
3
Overvoltage category
4
