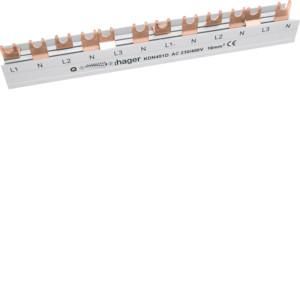

Phase rail 3-pole+N with fork connection 16mm² 80A 12 modules. Phase rail for suitable modular devices.
| Property | Value |
| Number of poles: | 4 |
| Number of phases: | 3 |
| Length: | 215 mm |
| Cross-section: | 16 mm² |
| Rated continuous current Iu: | 80 A |
| Max. Rated operating voltage Ue: | 400 V |
| Insulated: | yes |
| Suitable for number of devices: | 3 |
| Suitable for devices with N conductor: | yes |
| Pitch: | 17.8 mm |
| Suitable for devices with auxiliary switch: | no |
| Design of the electrical connection: | Fork |
| Rated impulse voltage: | 4 kV |
Features
Suitable for devices with auxiliary switch
No
Suitable for devices with N conductor
Yes
Suitable for number of devices
3
Pitch dimension
17.8 mm
Rated surge voltage
4 kV
Manufacturer
HAN
KDN451D
GTIN
3250613741082
Number of phases
3
Design of the electrical connection
Fork
Rated continuous current Iu
80A
Isolated
Yes
Length
215 mm
Max. rated operating voltage Ue
400V
Number of poles
4
Cross-section
16 mm²
