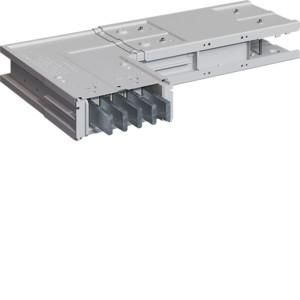

unibar M, 1000A, L-element. horizontal, 90° to the right, standard length. Rail element as L-shaped part with selectable angle, rail connection via terminal block with integrated expansion compensation for a type-tested low-voltage switchgear assembly in accordance with IEC/EN 61439-1 and -6. L-shaped part consisting of a 5-pole busbar system made of aluminum (nickel-plated and tin-plated) and housing made of sheet steel (galvanized and painted). Delivered ready for connection with all connecting parts. Note: Optionally, a fire barrier for wall or ceiling feed-through in accordance with DIN 4102 is installed for fire resistance class S90 or S120 in accordance with DIN 4102-9 (EI90 or EI120 in accordance with EN 13501). If required, can be implemented with functional integrity classes E60 or E90 in accordance with DIN 4102-12.
| Property | Value |
| Flexible: | no |
| Color: | gray |
| Rated current at AC 50 Hz: | 1000 A |
| Rated voltage at AC 50 Hz: | 690 V |
| Protection class (IP): | IP55 |
| Length: | 0.36 m |
| RAL number: | 7035 |
| Version: | other |
| Number of poles: | 5 |
| Number of conductors (without earth): | 5 |
