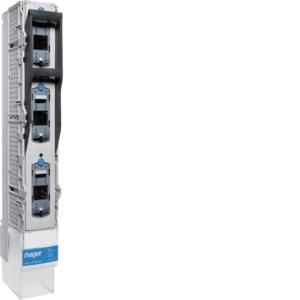

NH fuse switch-disconnector LV NH2 185mm 3-pole V-bed with terminals - black. NH2 fuse switch-disconnector 400 A, for busbar mounting, spacing 185 mm. According to DIN EN 60947-3 and IEC 60947-3, suitable for NH fuse links according to DIN 43620-1. Consisting of 3-pole switch strip base and sealable handle insert, touch protection on the handle, with sliding transparent window for voltage testing, all-pole switching, with V-connection terminal, rust-protected.
| Property | Value |
| Type of connection main circuit: | other |
| Design: | Fuse switch disconnector |
| Conditional rated short-circuit current Iq: | 120 kA |
| Double interrupting: | no |
| Max. Rated operating voltage Ue at AC: | 690 V |
| Rated continuous current Iu: | 400 A |
| Rail center distance 40 mm: | no |
| Rail center distance 50 mm: | no |
| Rail center distance 60 mm: | no |
| Number of poles: | 3 |
| Size of the fuse link: | NH2 |
| Rail center distance 100 mm: | no |
| Rail center distance 185 mm: | yes |
| Triggered message: | without |
Features
Manufacturer
HAN
LVSR2VPVK4
GTIN
4049857130696
Connection type main circuit
Other
Version
Fuse switch disconnector
Conditional rated short-circuit current Iq
120kA
Rated continuous current Iu
400A
Max. rated operating voltage Ue at AC
690V
Number of poles
3
