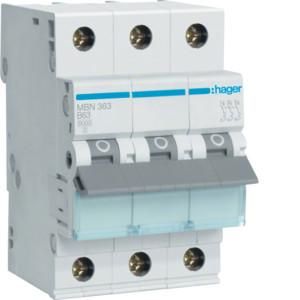

Miniature circuit breaker 3-pole 6kA B characteristic 63A 3 modules. Miniature circuit breaker according to DIN0641 part 11/8.92, contact protection IP2x according to DIN0106 part 100 with symbol. LS with time-delayed thermal release for overload protection and electromagnetic release for short-circuit protection. Suitable for the subsequent installation of additional equipment. Labelling option directly on the device and individual removal from the phase rail assembly by unlocking the quick-release top hat rail fastening.
| Property | Value |
| Triggering characteristic: | B |
| Rated current: | 63 A |
| Rated voltage: | 400 V |
| Type of voltage: | AC |
| Frequency: | 50 to 60 Hz |
| Width in pitch units: | 3 |
| Number of poles (total): | 3 |
| Energy limitation class: | 3 |
| Additional equipment possible: | yes |
| Overvoltage category: | 3 |
| Installation depth: | 70 mm |
| Protection class (IP): | IP20 |
| Rated switching capacity Icu according to IEC 60947-2 at 400 V: | 10 kA |
| Rated switching capacity Icn according to EN 60898 at 400 V: | 6 kA |
| Pollution level: | 2 |
| Switching neutral conductor: | no |
| Number of protected poles: | 3 |
| Rated insulation voltage Ui: | 500 V |
| Rated impulse withstand voltage Uimp: | 4 kV |
| Ambient temperature during operation: | -25 to 70 °C |
| Connectable conductor cross-section stranded: | 1 to 25 mm² |
| Connectable conductor cross-section single-wire: | 1 to 35 mm² |
Features
Manufacturer
HAN
MBN363
GTIN
3250614310461
Connectable conductor cross-section solid
1 to 35 mm²
Connectable conductor cross-section stranded
1 to 25 mm²
Number of protected poles
3
Trigger characteristics
B
Rated insulation voltage Ui
500V
Rated switching capacity Icn according to EN 60898 at 400 V
6kA
Rated switching capacity Icu according to IEC 60947-2 at 400 V
10kA
Rated voltage
400V
Rated impulse withstand voltage Uimp
4kV
Rated current
63 A
Width in pitch units
3
Installation depth
70 mm
Energy limitation class
3
Frequency
50 to 60 Hz
Switching neutral conductor
No
Number of poles (total)
3
IP protection)
IP20
Voltage type
AC
Ambient temperature during operation
-25 to 70 °C
Degree of contamination
2
Additional equipment possible
Yes
Overvoltage category
3
