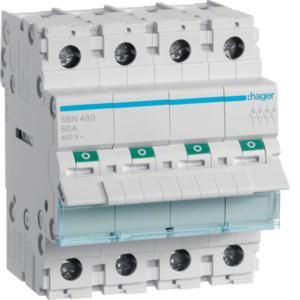

Off switch 80A 4 contacts 400V AC 4PLE. Off switch in accordance with EN 60669-1/669-2-4 with symbol, contact protection IP2x in accordance with BGV A3, bi-connect terminals in the access, snap-action switch for quick switching on and off, labelling option directly on the device and suitable for subsequent installation of additional equipment.
| Property | Value |
| Number of poles: | 4 |
| Rated current: | 80 A |
| Rated voltage: | 400 V |
| Width in pitch units: | 4 |
| Switching function: | Off switch |
| With signal lamp: | no |
| Voltage type: | AC |
| Protection class (IP): | IP20 |
| Min. Rated voltage: | 400 V |
| Rated breaking capacity: | 1.354 kA |
| Short-circuit strength (Icw): | 0.96 kA |
| Installation depth: | 69 mm |
| Number of contacts as normally open: | 4 |
Features
Rated breaking capacity
1.354 kA
Min. rated voltage
400 V
Manufacturer
HAN
SBN480
GTIN
3250615510273
Number of contacts as normally open
4
Rated voltage
400V
Rated current
80A
Width in pitch units
4
Installation depth
69 mm
Short circuit strength (Icw)
0.96kA
With signal lamp
No
Number of poles
4
Switching function
Off switch
IP protection)
IP20
Voltage type
AC
