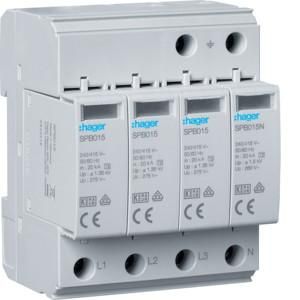

Surge arrester T2 4P 40kA TT/TNS defect indication. Type 2 surge arrester in 3+1 circuit, for protecting three-phase TT and TN-S systems. Consists of a four-way base element, three protective plugs with temperature-monitored high-performance varistor and a plug as a total current spark gap with dynamic disconnection device. Optical defect indication on the plugs in the event of overload. Connections for the active conductors from below and for earth/PE from above. Biconnect terminals for connecting round conductors and wiring bridges. Labeling option on the base element.
| Property | Value |
| Protection level: | 1.35 kV |
| Nominal discharge current (8/20): | 20 kA |
| Highest continuous voltage AC: | 275 V |
| Nominal voltage AC: | 400 V |
| Protection level LN: | 1.35 kV |
| Mounting type: | DIN rail TH35 |
| Size: | 4 TE |
| Signaling on the device: | optical |
| With remote signaling contact: | no |
| Test class type 2: | yes |
| Max. conductor cross-section flexible (fine-stranded): | 25 mm² |
| Max. Conductor cross-section rigid (single/multi-wire): | 35 mm² |
| Protection level N-PE: | 1.6 kV |
| Integrated backup fuse: | no |
| Protection class (IP): | IP20 |
| Network type DC: | no |
| Network type IT: | no |
| Network type TN: | yes |
| Network type TN-C: | no |
| Network type TN-CS: | yes |
| Network type TN-S: | yes |
| Network type TT: | yes |
| Network type other: | yes |
| Number of conductors (without earth): | 4 |
| Short-circuit strength (Isccr): | 25 kA |
| Max. discharge current (8/20): | 40 kA |
Features
Max. conductor cross-section rigid (single/multi-wire)
35 mm²
Max. conductor cross-section flexible (fine-stranded)
25 mm²
Protection level
1.35 kV
With remote signaling contact
No
Number of conductors (excluding earth)
4
Network form TT
Yes
Network type TN-S
Yes
Max. discharge current (8/20)
40 kA
Test class type 2
Yes
Network form TN
Yes
Network type TN-C
No
Network type TN-C-S
Yes
Short circuit strength (Isccr)
25 kA
Protection level L-N
1.35 kV
Network type DC
No
Protection level N-PE
1.6 kV
Integrated backup fuse
No
Network type IT
No
HAB
SPB413 T2 4P 40kA fault indication
Manufacturer
HAN
SPB413
GTIN
3250615515131
Size
4 HP
Highest continuous voltage AC
275V
Mounting type
DIN rail TH35
Nominal discharge current (8/20)
20kA
Nominal voltage AC
400V
IP protection)
IP20
Signaling on the device
Optical
