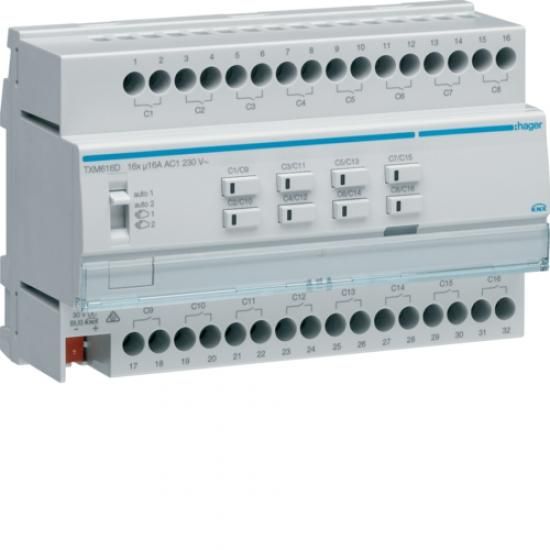

Hager TXM616D switching/blind output KNX 16/8-way 16A C-load

Used for switching independent loads or for controlling drives with 16 potential-free contacts. 16x switching or 8x roller shutter/blind drives in up or down operation. The switching or blind function can be selected for each output. With the switching function, you can select whether ON/OFF, timer function with switch-off warning, or forced control with status display. In addition, the automatic function can be activated or deactivated, and load shedding is possible by switching off a channel with the highest priority. 64 scene functions can be set per channel. With the blind function, 8x roller shutter/blind drives in up and down operation with slat angle adjustment can be controlled. Positioning function for blind and slat position in % - parameterization possible. With 64 scene settings per channel and adjustable sun protection function. Status objects for the position of the slats in percent and the upper and lower end position points. Forced control with status display and 3 alarm objects with different priority control. Manual operation for opening, stopping and closing. LED switching status display.

Nominal current: 16 A
Contact load capacity: 16A 250V AC1
Max. incandescent lamp load: 2300 W
Max. load for electronic transformers: 1000 W
Max. fluorescent lamp load (series connection): 27 x 36W
Energy saving lamp power: 25x18W
LED power: 183 W
Max. number of LED/ESL lamps: 25
