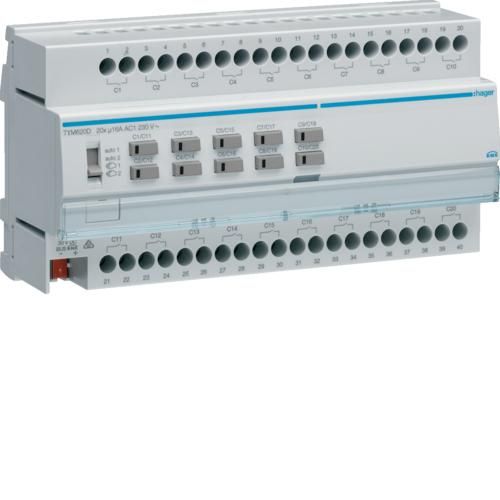

Hager TYM620D switching/blind output KNX 20/10-way 16A CLast

Switching/blind actuator 20/10-way KNX, 16A C load. Modular device with integrated bus coupler. Used to switch independent loads or to control drives and is equipped with potential-free contacts and can be connected in multiple phases. Switching or roller shutter/blind drive in up or down operation. To control lighting outputs, you can choose between ON/OFF, timer, safety off, forced control, lock, logic, preset, delay function or 64 scenes. With toggle function for time or continuous function. The blind function can be used to adjust the UP/DOWN/Stop movement command and the slat angle. Percent control of the blind to move to a predefined position. The sun protection function can be used in conjunction with an external sensor to control the brightness per room. With alarm function to control the blind to a defined position. Safety descent as long as the button is pressed. 64 scene functions per channel. Logic block for controlling the output depending on the result of a logical operation. Preset, lock function, forced control. The device converts the bus information into corresponding commands. The outputs are switched via the system line from the inputs assigned to them. Operating hours counter per output. The device can be read out using a diagnostic tool. With programming button and red programming LED, bus connection via bus terminal, switching channels via box terminals. No external power supply required. With manual operation and LED switching status display as well as labeling option directly on the device. Note: The device can be programmed using the ETS (from version 4).
