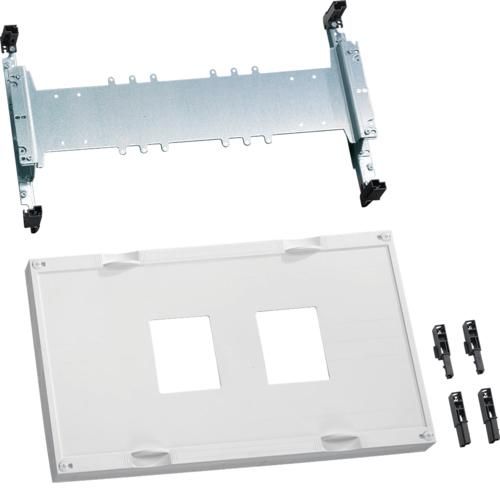

Module, universN, 300x500mm, for 2 circuit breakers H3+ P160. univers N power switch disconnector module for setting up a low-voltage distribution as a switchgear combination up to 1600A, rated voltage 3AC 690 V /50Hz. Sealable contact protection covers as standard, reinforced using the internal gas pressure process with four quick-release bolts each. Mark approval in accordance with DIN EN 61 439 -1 and - 2 and -3 (VDE 0660 Part 600 -1 and -2 and -3), dimension standard: DIN 43 870.
| Property | Value |
| Width: | 500 mm |
| Suitable for load-break switches: | yes |
| Suitable for circuit breakers: | yes |
| Suitable for zero-voltage switches: | no |
| Suitable for changeover switch: | no |
| Height: | 300 mm |
| Equipped with load-break switch: | no |
| Equipped with circuit breaker: | no |
| Equipped with zero-voltage switch: | no |
| Equipped with changeover switch: | no |
| Depth: | 110 mm |
| With cover: | yes |
| Plastic cover plate: | yes |
| Number of switches: | 2 |
| With distribution terminals: | no |
Features
Manufacturer
HAN
UK22LH0
GTIN
3250616211339
Number of switches
2
Width
500 mm
Suitable for load break switches
Yes
Suitable for circuit breakers
Yes
Height
300 mm
With cover
Yes
Depth
110 mm
