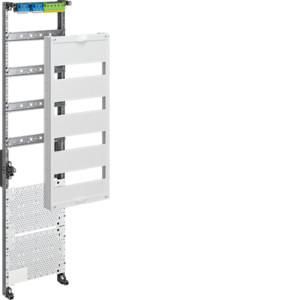

Media field, universal, for field v. AP 7-row, 4x12Mod+3xMedia, 1050x250mm, QC. Installation panel at the top for surface-mounted small installation distributors in accordance with DIN EN 61439-1/-3,0660-600-1/-3, in accordance with dimensional standard DIN 43871, for the installation of devices up to 125 A, support rails made of profiled and galvanized sheet steel, device support rails made of profiled and galvanized sheet steel, with contact protection cover and quick-connect terminals in combination with multimedia panel at the bottom equipped with perforated sheet metal plate, horizontal partitioning at the top.
| Property | Value |
| With mounting plate: | yes |
| With support rail: | yes |
| Depth: | 97 mm |
| With cover: | yes |
| Installation depth: | 117 mm |
| Height: | 1050 mm |
| Width: | 250 mm |
Features
Manufacturer
HAN
UM71M4
GTIN
3250616231559
Width
250 mm
Installation depth
117 mm
Height
1050 mm
With cover
Yes
With mounting plate
Yes
Depth
97 mm
