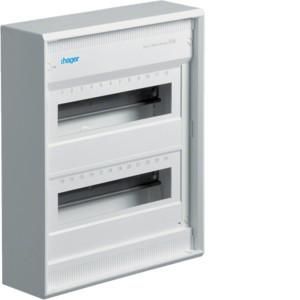

Small distribution board, Volta, APV, 2-row, 24 PLE without door, IP30. Surface-mounted small installation distribution board made of plastic, in accordance with DIN60670-24 and DIN 43871, suitable for use in residential buildings in accordance with DIN 18015. For installation of devices up to 63 A with a max. installation depth of 70 mm in accordance with dimensional standard DIN 43880. Rated voltage 400V/50Hz. Protection class IP30, protection class II, protective insulation. Consists of a plastic base plate with cable clamp as standard, device carrier made of galvanized sheet steel and DIN top hat rail for installation of modular devices in accordance with DIN 43880. Device cover made of plastic with 46 mm device slot, sealable as standard. Finger-safe PE/N terminal with plug-in technology in assembly-friendly snap technology and N terminal for FI circuits. Note: Sheet steel door is not included (accessory).
| Property | Value |
| Width in division units: | 12 |
| Number of rows: | 2 |
| Height: | 370 mm |
| Width: | 305 mm |
| Depth: | 96.5 mm |
| Protection class (IP): | IP30 |
| Color: | white |
| Mounting type: | Surface-mounted |
| With lock: | no |
| Transparent cover/door: | no |
| Housing material: | Plastic |
| RAL number: | 9010 |
| DIN rail: | yes |
| Mounting option: | yes |
| With mounting plate: | no |
| Type of cover: | without |
| Cover design: | with cutout |
| Inner depth: | 92.5 mm |
