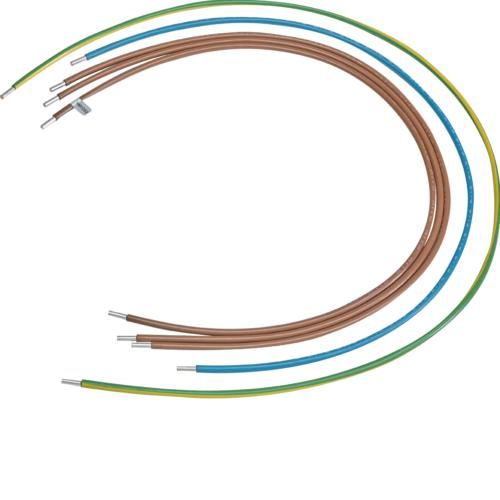

for double-deck support plates, with 1/2-row distributor, meter below, 16 mmN for Y891F 1200 mm, N for Y891DS2 950 mm, for installation kits with 1-row distributor (1200 mm height) and 2-row distributor (1350 mm height), at 1350 mm height the devices must be placed on the lower top hat rail of the upper connection compartment, Y891F for meters with a larger clamping range (e.g. 80 A meters), wire end ferrules 25 mm, Y891DS2 for standard meters up to 63 A rated current or up to 44 A continuous current, wire end ferrules 18 mm
Property | Value |
Number of poles: | 5 |
Nominal cross section: | 16 mm² |
Meter access: | bottom |
For installation kit: | 1- and 2-row |
Design: | for 2-tier support plates |
Color: | 3xbrown / 1xblue / 1xgreen/yellow |
Features
Manufacturer
HAN
Y891DS2
GTIN
3250617851787
Version
For 2-storey support plates
Nominal cross section
16 mm²
Number of poles
5
