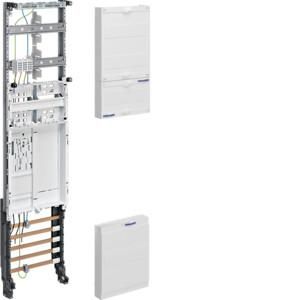

Complete panel, univers Z, 1 meter space, BKE-I, H=1050mm, 1-field. Complete panel / installation kit univers Z for eHZ for setting up meter spaces in accordance with DIN 43870, quick installation in the cabinet using a snap-in system, equipped and wired in accordance with VNB TAB regulations for eHZ meter spaces in accordance with DIN603-1 (VDE 0603-1). Upper connection compartment: 1-row, height 150 mm with one top hat rail, 2-row, height 300 mm with two top hat rails, equipped with 3-/4- or 5-pole main line branch terminals, finger-safe in accordance with BGVA3 or equipped with __________ __________ ___________ -meter fields with integrated fastening and contacting device (BKE-I) for eHZ, for installation in accordance with DIN 43870, eHZ meter support plate with integrated additional space (for communication and control devices). Additional space: 1-field, height 150 mm, closed with cover, pre-punched for 12 PLE, sealable, with top hat rail 12 PLE, openings for cable routing. Lower connection compartment: Height 300 mm equipped with top hat rail or CU busbars, 12 x 5 mm, 4-pole / 5-pole or equipped with ____________ _________ ___________.
| Property | Value |
| Height: | 1050 mm |
| Width: | 250 mm |
| Width in modular units: | 12 |
| Design: | eHZ |
| Number of meter spaces: | 1 |
| With wiring: | yes |
| With mounting plate: | no |
| Lower connection compartment: | with 5-pole busbar |
| Main switch rated current: | 63 A |
| Color: | white |
| RAL number: | 9010 |
| Protection class (IP): | other |
