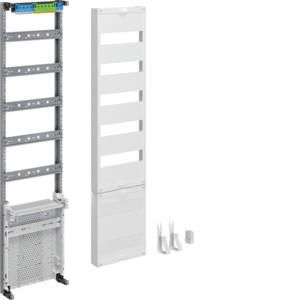

Distribution panel, univers Z, height 1050mm, 5-row, 1-field, with APZ below. Complete panel / installation kit for installation in meter cabinets, univers Z system, consisting of distribution panel, APZ panel and additional equipment. As circuit distribution, in accordance with DIN 43870 for accommodating modular devices (REG devices) on DIN top hat rails as well as device components for APZ application (meter location connection point). Quick assembly in the cabinet using a snap-in system without tools, consisting of a 250 mm wide panel with a supporting frame made of profiled sheet steel, with profiled DIN top hat rails 35x7.5 mm, with finger-safe PE/N terminals with plug-in technology, mounted horizontally in the upper distributor, with perforated mounting plate (3.2 mm perforation) and profiled DIN top hat rail 35x7.5 mm, galvanized sheet steel. Enclosed RJ45 socket, cable duct mounted on the rear, sealed on all sides for APZ application. Universal retaining bracket with screwless fastening of device components directly on the perforated sheet (can be hung). Contact protection covers made of plastic with four-point fastening, sealable as standard and integrated handle.
| Property | Value |
| With mounting plate: | yes |
| Width: | 250 |
| With N-PE terminals: | yes |
| Height: | 1050 |
| Number of DIN rails: | 5 |
| Depth: | 96 |
| With cover: | yes |
