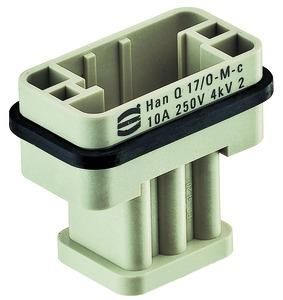

Inserts, crimp connection, pin, polycarbonate (PC), RAL 7032 (pebble grey), rated current: 10 A, size: Han-Compact, contacts: 17, conductor cross-section: 0.14...2.5 mm²
| Property | Value |
| Number of poles: | 17 |
| Rated current In: | 10 A |
| Rated impulse voltage: | 2.5 kV |
| With protective conductor: | yes |
| Connectable conductor cross-section, stranded: | 2.5 to 0.14 mm² |
| Material of the connector insert: | Thermoplastic |
| Rated voltage: | 250 V |
| Overvoltage category: | III |
| Ambient temperature: | 125 to -40 °C |
| Contact design: | Pin |
| Pollution level: | 2 |
| Material of the contact: | Brass |
| Connectable conductor cross-section, single-wire: | 0.14 to 2.5 mm² |
| Connectable conductor cross-section, fine-wire with wire end ferrule: | 0.14 to 2.5 mm² |
| Connectable conductor cross-section, fine-wire without wire end ferrule: | 0.14 to 2.5 mm² |
| Contact insert without contacts: | yes |
| Material of the contact coating: | other |
| Design of the electrical connection: | Crimp connection |
| With Wire protection: | no |
| Flammability class of the insulating material according to UL 94: | V0 |
| Material of the contact insert: | Thermoplastic |
| Number of power contacts: | 17 |
| Operating temperature: | -40 to 125 °C |
| Min. number of mating cycles: | 500 |
Features
Rated surge voltage
2.5 kV
HAB
09120173001 Han Q 17/0-Mc 10A
Minimal order
10 pcs
Manufacturer
HAN
09120173001
GTIN
2000006829078
Connectable conductor cross-section solid
0.14 to 2.5 mm²
Connectable conductor cross-section stranded
2.5 to 0.14 mm²
Design of the electrical connection
Crimp connection
Rated voltage
250V
Rated current In
10A
Operating temperatur
-40 to 125 °C
Flammability class of the insulating material according to UL 94
V0
Number of poles
17
Ambient temperature
125 to -40 °C
Degree of contamination
2
Overvoltage category
III
