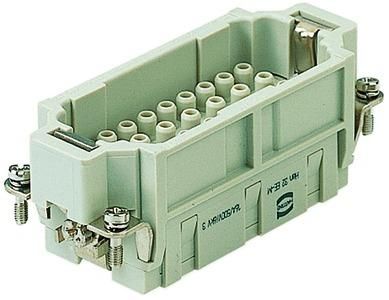

Inserts, crimp connection, pin, polycarbonate (PC), RAL 7032 (pebble grey), rated current: 16 A, size: 16 B, contacts: 32, conductor cross-section: 0, 14...4 mm²
| Property | Value |
| Number of poles: | 32 |
| Rated current In: | 16 A |
| Rated impulse voltage: | 6 kV |
| With protective conductor: | yes |
| Connectable conductor cross-section, stranded: | 4 to 0.14 mm² |
| Material of the connector insert: | Thermoplastic |
| Rated voltage: | 600 V |
| Overvoltage category: | III |
| Ambient temperature: | 125 to -40 °C |
| Contact design: | Pin |
| Diameter of the plug contact: | 2.5 mm |
| Pollution level: | 3 |
| Material of the Contacts: | other |
| Connectable conductor cross-section, single-wire: | 0.14 to 4 mm² |
| Connectable conductor cross-section, fine-wire with wire end ferrule: | 0.14 to 4 mm² |
| Connectable conductor cross-section, fine-wire without wire end ferrule: | 0.14 to 4 mm² |
| Contact insert without contacts: | yes |
| Material of the contact coating: | other |
| Design of the electrical connection: | Crimp connection |
| With wire protection: | no |
| Flammability class of the insulating material according to UL 94: | V0 |
| Material of the contact insert: | Thermoplastic |
| Number of power contacts: | 32 |
| Operating temperature: | -40 to 125 °C |
| Min. number of mating cycles: | 500 |
Features
Rated surge voltage
6 kV
HAB
09320323001 HAN 32 EE-MC
Manufacturer
HAN
09320323001
GTIN
2000006856296
Connectable conductor cross-section solid
0.14 to 4 mm²
Connectable conductor cross-section stranded
4 to 0.14 mm²
Design of the electrical connection
Crimp connection
Rated voltage
600V
Rated current In
16A
Operating temperatur
-40 to 125 °C
Flammability class of the insulating material according to UL 94
V0
Number of poles
32
Ambient temperature
125 to -40 °C
Degree of contamination
3
Overvoltage category
III
