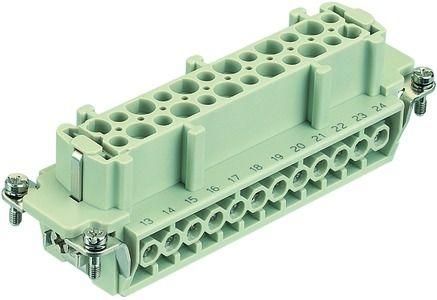

Inserts, screw connection, socket, polycarbonate, RAL 7032 (pebble grey), rated current: 16A, size: 24 B, contacts: 24, conductor cross-section: 0.75...2.5mm, copper alloy, silver-plated
| Property | Value |
| Number of poles: | 24 |
| Rated current In: | 16 A |
| Rated impulse voltage: | 6 kV |
| With protective conductor: | yes |
| Connectable conductor cross-section, stranded: | 2.5 mm |
| Material of the connector insert: | Thermoplastic |
| Rated voltage: | 500 V |
| Contact design: | Socket |
| Pollution level: | 3 |
| Material of the contact: | Other copper alloys |
| Connectable conductor cross-section, fine-stranded without wire end ferrule: | 2.5 mm |
| Contact insert without contacts: | no |
| Material of the contact coating: | Silver |
| Design of the electrical connection: | Screw connection |
| With wire protection: | yes |
Features
Rated surge voltage
6 kV
HAB
09330242701 24-pin 24E
Manufacturer
HAN
09330242701
GTIN
4000049235094
Connectable conductor cross-section stranded
2.5 mm
Design of the electrical connection
Screw connection
Rated voltage
500V
Rated current In
16A
Number of poles
24
Degree of contamination
3
