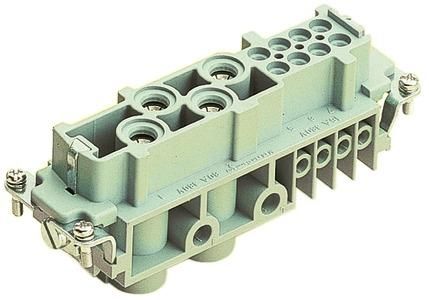

Inserts, screw connection, socket, polyamide, RAL 7032 (pebble grey), rated current: 80A, size: 24 B, contacts: 4, + 8 additional control contacts, conductor cross-section: 1.5...16mm, 0.5...2.5 control, copper alloy, silver-plated
| Property | Value |
| Number of poles: | 12 |
| Rated current In: | 80 A |
| Rated impulse voltage: | 6 kV |
| With protective conductor: | yes |
| Connectable conductor cross-section, stranded: | 16 to 1.5 mm² |
| Material of the connector insert: | Thermoplastic |
| Rated voltage: | 600 V |
| Overvoltage category: | III |
| Ambient temperature: | 125 to -40 °C |
| Contact design: | Socket |
| Diameter of the plug contact: | 5.4 mm |
| Degree of pollution: | 3 |
| Material of the contact: | other copper alloys |
| Connectable conductor cross-section, single-wire: | 1.5 to 16 mm² |
| Connectable conductor cross-section, fine-wire with wire end ferrule: | 1.5 to 16 mm² |
| Connectable conductor cross-section, fine-wire without wire end ferrule: | 1.5 to 16 mm² |
| Contact insert without contacts: | no |
| Material of the contact coating: | Silver |
| Design of the electrical connection: | Screw connection |
| With wire protection: | no |
| Flammability class of the insulating material according to UL 94: | HB |
| Material of the contact insert: | Thermoplastic |
| Number of power contacts: | 12 |
| Operating temperature: | -40 to 125 °C |
| Min. Number of mating cycles: | 500 |
Features
Rated surge voltage
6 kV
HAB
09380122701 HAN-K4/8-BU-S
Manufacturer
HAN
09380122701
GTIN
5713140056381
Connectable conductor cross-section solid
1.5 to 16 mm²
Connectable conductor cross-section stranded
16 to 1.5 mm²
Design of the electrical connection
Screw connection
Rated voltage
600V
Rated current In
80A
Operating temperatur
-40 to 125 °C
Flammability class of the insulating material according to UL 94
HB
Number of poles
12
Ambient temperature
125 to -40 °C
Degree of contamination
3
Overvoltage category
III
