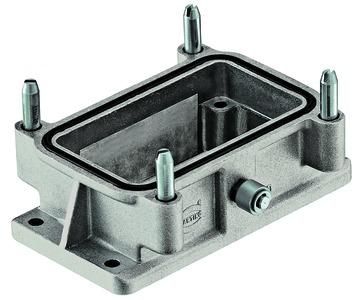

Bullet-mounted housing, size: 10 B, central bracket (grommet side), housing material: die-cast aluminum, electrically conductive, unpainted, seal material: NBR, protection class: IP65
| Property | Value |
| Width: | 69 mm |
| Height: | 28.2 mm |
| Housing design: | Bullet-mounted housing |
| Protection class (IP), mounted: | IP65 |
| Operating temperature: | -40 to 125 °C |
| Cable feed arrangement: | other |
| Locking type: | Longitudinal bracket |
| With hinged lid: | no |
| EMC version: | no |
| Corrosion-resistant: | no |
| With cable gland: | no |
| UV-resistant: | no |
| Housing material: | Aluminum |
| Flammability class of the insulating material according to UL 94: | other |
| Housing coating: | uncoated |
| Bracket position: | upper part |
| Housing colour: | other |
| Mounting type of cable gland: | without |
| With nozzle: | no |
| With seal: | yes |
Features
HAB
09620100381 Han 10EMV-agg-R
Manufacturer
HAN
09620100381
GTIN
2000006851192
Housing coating
Uncoated
Operating temperatur
-40 to 125 °C
Width
69 mm
Flammability class of the insulating material according to UL 94
Other
EMC version
No
Housing color
Other
Height
28.2 mm
With hinged lid
No
UV-resistant
No
Housing material
Aluminum
