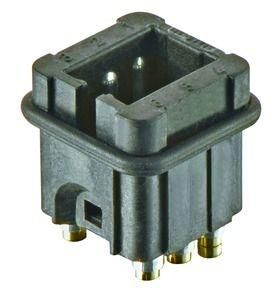

Inserts, screw connection, pin, polyamide (PA), black, rated current: 10 A, size: 3 A, contacts: 6, conductor cross-section: 1.5 mm², copper alloy, silver-plated
| Property | Value |
| Number of poles: | 6 |
| Rated current In: | 10 A |
| Rated impulse voltage: | 0.8 kV |
| With protective conductor: | no |
| Connectable conductor cross-section, stranded: | 1.5 mm² |
| Material of the connector insert: | Thermoplastic |
| Rated voltage: | 25 V |
| Contact design: | Pin |
| Pollution level: | 3 |
| Material of the contact: | other copper alloys |
| Connectable conductor cross-section, fine-stranded without wire end ferrule: | 1.5 mm² |
| Contact insert without contacts: | no |
| Material of the Contact coating: | Silver |
| Design of the electrical connection: | Screw connection |
| With wire protection: | no |
| Flammability class of the insulating material according to UL 94: | HB |
| Material of the contact insert: | Thermoplastic |
| Number of power contacts: | 6 |
| Operating temperature: | -40 to 100 °C |
| Min. Number of mating cycles: | 500 |
Features
Rated surge voltage
0.8 kV
HAB
9700062616
Manufacturer
HAN
09700062616
GTIN
5713140102866
Connectable conductor cross-section stranded
1.5 mm²
Design of the electrical connection
Screw connection
Rated voltage
25V
Rated current In
10A
Operating temperatur
-40 to 100 °C
Flammability class of the insulating material according to UL 94
HB
Number of poles
6
Degree of contamination
3
