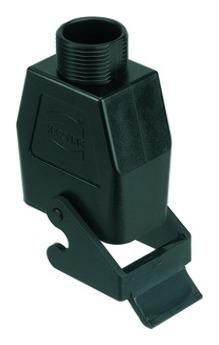

Coupling housing, for Han-Compact half screw connection, size: Han-Compact, single lever, polyamide, straight cable entry, 1x M25, housing material: polycarbonate, RAL 9005 (jet black), protection class: IP65
| Property | Value |
| Width: | 34.9 mm |
| Height: | 64.5 mm |
| Housing design: | Coupling housing |
| Protection class (IP), mounted: | IP65/IP67 |
| Operating temperature: | -40 to 125 °C |
| Cable feed arrangement: | top |
| Locking type: | Longitudinal bracket |
| With hinged lid: | no |
| EMC version: | no |
| Corrosion-resistant: | yes |
| With cable gland: | no |
| UV-resistant: | no |
| Housing material: | Plastic |
| Flammability class of the insulating material according to UL 94: | V0 |
| Housing coating: | other |
| Bracket position: | Lower part |
| Housing color: | black |
| Cable gland fastening type: | metric |
| With nozzle: | no |
| With seal: | no |
| Number of cable entries: | 1 |
Features
HAB
19120080729 Han Q 8/0-kg-M25
Minimal order
10 pcs
Manufacturer
HAN
19120080729
GTIN
2000006883476
Number of cable entries
1
Housing coating
Other
Operating temperatur
-40 to 125 °C
Width
34.9 mm
Flammability class of the insulating material according to UL 94
V0
EMC version
No
Housing color
Black
Height
64.5 mm
With hinged lid
No
UV-resistant
No
Housing material
Plastic
