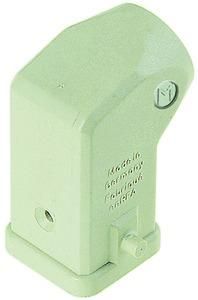

Grommet housing, size: 3 A, single lever, side cable entry, 1x M20, housing material: polycarbonate, RAL 7032 (pebble grey), protection class: IP44, IP67, with sealing screw 09 20 000 9918
| Property | Value |
| Width: | 26.5 mm |
| Height: | 54.5 mm |
| Housing design: | Plug housing |
| Protection class (IP), mounted: | IP44 |
| Operating temperature: | -40 to 125 °C |
| Cable feed arrangement: | side |
| Locking type: | Longitudinal bracket |
| With hinged lid: | no |
| EMC version: | no |
| Corrosion-resistant: | yes |
| With cable gland: | no |
| UV-resistant: | no |
| Material of the housing: | Plastic |
| Flammability class of the insulation material according to UL 94: | V0 |
| Housing coating: | other |
| Bracket position: | Lower part |
| Housing color: | grey |
| Cable gland fastening type: | metric |
| With nozzle: | no |
| With seal: | no |
| Number of cable entries: | 1 |
Features
HAB
19200030620 HAN3A-GW-M20
Minimal order
10 pcs
Manufacturer
HAN
19200030620
GTIN
2000006885814
Number of cable entries
1
Housing coating
Other
Operating temperatur
-40 to 125 °C
Width
26.5 mm
Flammability class of the insulating material according to UL 94
V0
EMC version
No
Housing color
Gray
Height
54.5 mm
With hinged lid
No
UV-resistant
No
Housing material
Plastic
