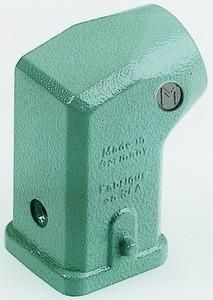

Grommet housing, for Han-Brid, with glued-in seal, size: 3 A, single lever, side cable entry, 1x M20, housing material: die-cast zinc, powder-coated, RAL 7037 (dust gray), seal material: NBR, protection class: IP44, IP67, with sealing screw 09 20 000 9918
| Property | Value |
| Width: | 28 mm |
| Height: | 54.4 mm |
| Housing design: | Plug housing |
| Protection class (IP), mounted: | IP44 |
| Operating temperature: | -40 to 125 °C |
| Cable feed arrangement: | side |
| Locking type: | Longitudinal bracket |
| With hinged lid: | no |
| EMC version: | no |
| Corrosion-resistant: | yes |
| With cable gland: | no |
| UV-resistant: | no |
| Material of the housing: | zinc |
| Flammability class of the insulating material according to UL 94: | other |
| Housing coating: | powder-coated |
| Bracket position: | lower part |
| Housing color: | grey |
| Cable gland fastening type: | metric |
| With nozzle: | no |
| With seal: | yes |
| Number of cable entries: | 1 |
Features
HAB
19200031643 Han3A-gw-M20
Manufacturer
HAN
19200031643
GTIN
5713140124622
Number of cable entries
1
Housing coating
Powder coated
Operating temperatur
-40 to 125 °C
Width
28 mm
Flammability class of the insulating material according to UL 94
Other
EMC version
No
Housing color
Gray
Height
54.4 mm
With hinged lid
No
UV-resistant
No
Housing material
Zinc
