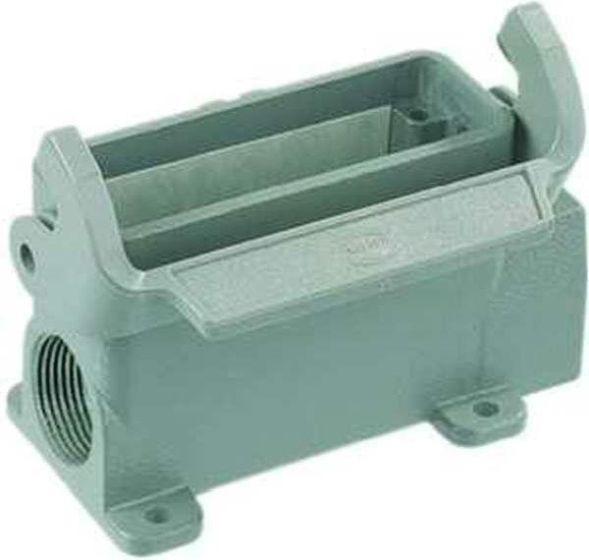

Socket housing, size: 16 A, low design, single lever, polycarbonate (PC), stainless steel, side cable entry, 2x M20, housing material: die-cast aluminum, powder-coated, RAL 7037 (dust gray)
| Property | Value |
| Housing design: | Socket housing |
| Protection class (IP), mounted: | IP65 |
| Operating temperature: | -40 to 125 °C |
| Cable entry arrangement: | side |
| Type of Locking: | Longitudinal bracket |
| With hinged lid: | no |
| EMC version: | no |
| Corrosion-resistant: | no |
| With cable gland: | no |
| UV-resistant: | no |
| Material of the housing: | Aluminium |
| Flammability class of the insulating material according to UL 94: | other |
| Housing coating: | powder-coated |
| Bracket position: | lower part |
| Housing colour: | grey |
| Cable gland fastening type: | metric |
| With nozzle: | no |
| With seal: | no |
| Number of cable entries: | 2 |
Features
HAB
HAN16A-asg2-LB-M20
Manufacturer
HAN
19200160290
GTIN
5713140124752
Number of cable entries
2
Housing coating
Powder coated
Operating temperatur
-40 to 125 °C
Flammability class of the insulating material according to UL 94
Other
EMC version
No
Housing color
Gray
With hinged lid
No
UV-resistant
No
Housing material
Aluminum
