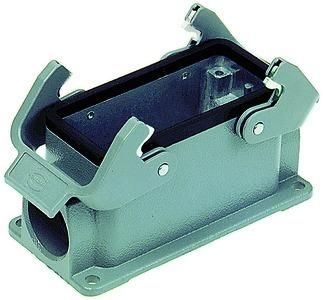

Socket housing, size: 10 B, low design, cross bracket, polycarbonate, stainless steel, side cable entry, 1x M25, housing material: die-cast aluminum, powder-coated, RAL 7037 (dust gray), seal material: NBR, protection class: IP65
| Property | Value |
| Width: | 94 mm |
| Height: | 53.8 mm |
| Housing design: | Socket housing |
| Protection class (IP), mounted: | IP65 |
| Operating temperature: | 125 °C |
| Cable feed arrangement: | side |
| Locking type: | Cross bar |
| With hinged lid: | no |
| EMC version: | no |
| Corrosion-resistant: | no |
| With cable gland: | no |
| UV-resistant: | yes |
| Material of the housing: | Aluminium |
| Coating of the housing: | powder-coated |
| Bracket position: | Lower part |
Features
HAB
19300101231 Han10B-asg1-QB-M25
Manufacturer
HAN
19300101231
GTIN
4000049235681
Housing coating
Powder coated
Operating temperatur
125°C
Width
94 mm
EMC version
No
Height
53.8 mm
With hinged lid
No
UV-resistant
Yes
Housing material
Aluminum
