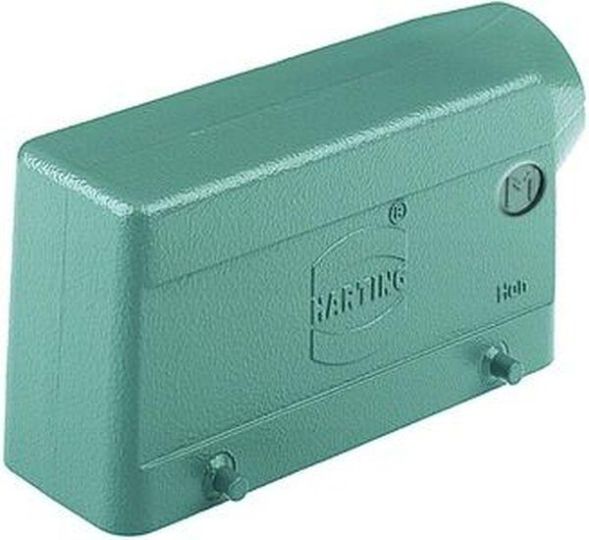

Grommet housing, size: 24 B, low design, cross bracket, side cable entry, 1x M25, housing material: die-cast aluminum, powder-coated, RAL 7037 (dust gray), protection class: IP65
| Property | Value |
| Width: | 120 mm |
| Height: | 62.5 mm |
| Housing design: | Plug housing |
| Protection class (IP), mounted: | IP65 |
| Operating temperature: | -40 up to 125 °C |
| Cable feed arrangement: | side |
| Locking type: | Cross bar |
| With hinged lid: | no |
| EMC version: | no |
| Corrosion-resistant: | no |
| With cable gland: | no |
| UV-resistant: | yes |
| Housing material: | Aluminium |
| Flammability class of the insulating material according to UL 94: | other |
| Housing coating: | powder-coated |
| Bracket position: | lower part |
| Housing color: | grey |
| Cable gland fastening type: | metric |
| With nozzle: | no |
| With seal: | no |
| Number of cable entries: | 1 |
Features
HAB
19300241521 Han 24B-gs-M25
Manufacturer
HAN
19300241521
GTIN
5713140127227
Number of cable entries
1
Housing coating
Powder coated
Operating temperatur
-40 to 125 °C
Width
120 mm
Flammability class of the insulating material according to UL 94
Other
EMC version
No
Housing color
Gray
Height
62.5 mm
With hinged lid
No
UV-resistant
Yes
Housing material
Aluminum
