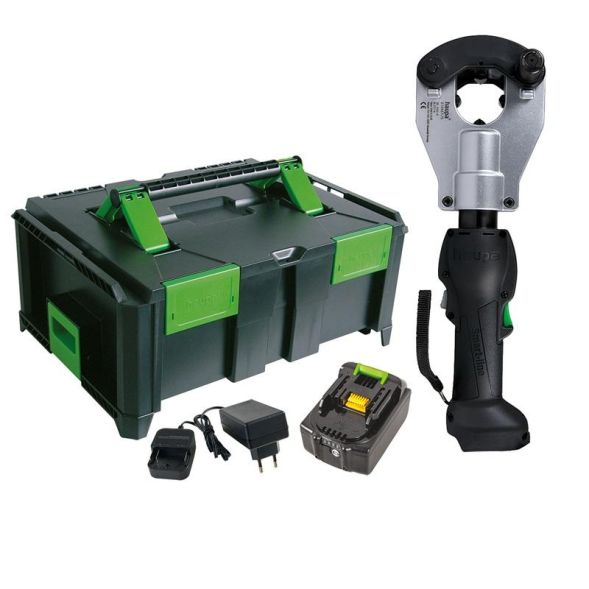

Battery-operated hydraulic pressing tool SD400-6
Pressing head can be rotated 360°, manual return after pressing is complete, no inserts required, mandrel pressing.
The different colors of the sensor LED indicate whether the pressing was completed successfully or which errors have occurred:
Green light: pressing completed in accordance with standards, motor stopped.
Orange light: battery voltage insufficient
Red light: pressing interrupted prematurely
The device also has 1 white LED to illuminate the respective work area.
Technical data:
Pressing force kN: 60
Working pressure in bar: 700
Head can be opened
Cable lugs: standard Cu 25-400
Connectors: standard Cu 25-400
Pressing time battery-operated in seconds: 6-12
Battery charging time in minutes: 30
Battery type: Li-Ion, 18 V, 2 Ah
Weight in kg: 2.4
Weight of set in kg: 7.9
Item no. 216667/M-1
EAN 4011923608682
Scope of delivery:
1 crimping tool
1 carrying strap
1 charger
1 battery
1 SysCon stacking box
