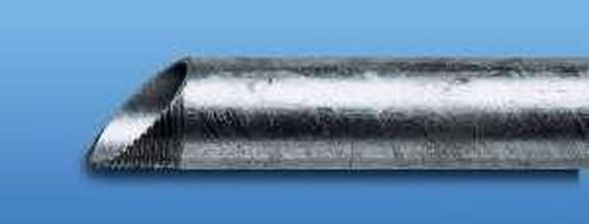

Armoured steel pipes made of rolled mild steel are suitable for high pressure and temperature loads and for the highest mechanical stresses. STAPA pipes are supplied in standard lengths of 3.00 m. Functional integrity E30/E90, these products are suitable for laying cables with functional integrity and are tested in the system. MATERIAL: Rolled mild steel, bent, high frequency welded, hot-dip galvanized, APPLICATION: Installations where high temperatures occur and the highest level of mechanical protection and corrosion resistance is required. DIN EN 61386-21, classification 555710.
| Property | Value |
| Outer diameter: | 50 mm |
| Inner diameter: | 46.8 mm |
| Design: | rigid with thread |
| Material: | steel |
| Material quality: | steel (rolled mild steel) |
| Surface: | hot-dip galvanized |
| Quality of surface coating: | other |
| Surface polished: | no |
| Surface brushed: | no |
| Flush-mounted: | no |
| Surface-mounted: | yes |
| Suitable for concrete installation: | no |
| Machinery and plant installation: | no |
| Underfloor installation (bitumen, hot asphalt): | yes |
| Underfloor installation (screed): | yes |
| Installation outdoors: | yes |
| Installation on wood: | yes |
| Hollow wall installation: | no |
| Installation in the ground: | yes |
| Compressive strength class: | very heavy (class 5) |
| Operating temperature: | -45 to 400 °C |
Features
Inner diameter
46.8 mm
HAB
STAPA EGV-DN50
Minimal order
3 meter
Manufacturer
HAN
9510150
GTIN
4021922201272
Version
Rigid with thread
Outer diameter
50 mm
Operating temperature
-45 to 400 °C
Surface
Galvanized
Brushed surface
No
Material
Steel
Material quality
Steel (mild steel rolled)
