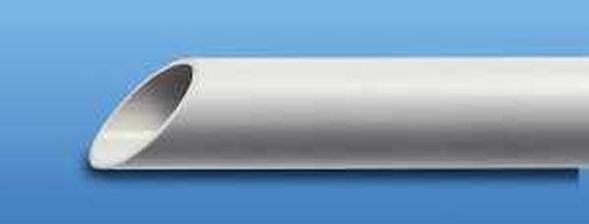

HEGLERPLAST electrical installation pipes for exposed installation, which should also provide a perfect visual appearance. PVC-U plastic pipes are ideal for in-wall and concealed installation and in concrete construction. In addition, only a small number of fastening points are required, making installation inexpensive. The pre-assembled or molded sleeve on the rigid HEGLERPLAST pipes provides an installation advantage. HEGLERPLAST pipes are supplied in a standard length of 3.00 m. Special lengths are available on request. Functional integrity E30/E90, these products are suitable for laying cables with functional integrity and are tested in the system, MATERIAL: special plastic (halogen-free, flame-retardant), USE: installations of safety-relevant applications on plaster and in vibrated, poured and rammed concrete, DIN EN 61386-21: classification 335212.
| Property | Value |
| Outer diameter: | 32 mm |
| Inner diameter: | 27.8 mm |
| Highly slippery inner layer: | no |
| Material: | other |
| With socket: | yes |
| Color: | gray |
| Halogen-free: | yes |
| Flame-retardant version: | yes |
| Bending behavior: | rigid |
| Compressive strength class: | medium (class 3) |
| Impact resistance: | medium (class 3) |
| Surface-mounted: | yes |
| Flush-mounted: | no |
| On wood: | yes |
| Hollow wall: | no |
| Suitable for concrete installation: | yes |
| Machinery and plant installation: | no |
| Underfloor installation (screed): | no |
| Installation outdoors: | yes |
| Laying in the ground: | no |
| Operating temperature: | -45 to 90 °C |
