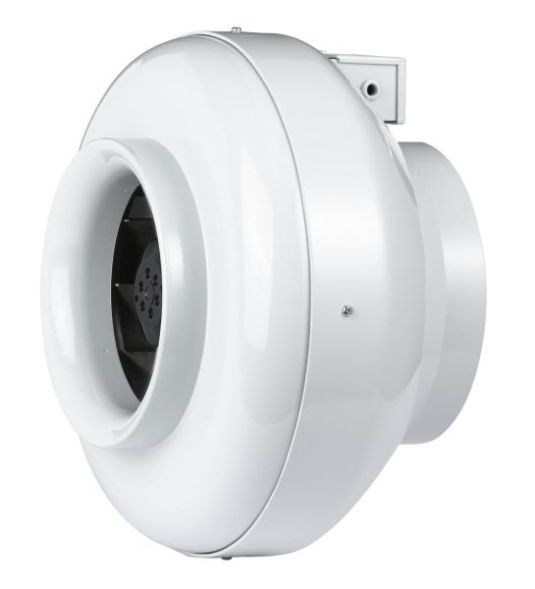

Radial duct fan RADAX RR for direct installation in the duct system., Housing made of impact-resistant plastic with round connection pieces adapted to standard ducts., High-performance radial impeller with backward-curved blades made of plastic. Vibration-free operation due to dynamic balancing in accordance with quality level G 6.3 VDI 2060 and DIN ISO 1940., Drive: Single-phase AC external rotor motor, built-in thermal contacts wired in series with the winding, closed design, maintenance-free, sealed, low-noise ball bearings with long-term lubrication.
| Property | Value |
| Diameter of the housing: | 245 mm |
| Air volume without load: | 390 m³/h |
| Material of the housing: | Plastic |
| Protection class (IP): | IP44 |
| Connection voltage: | 230 V |
| Power consumption: | 0.042 kW |
| With thermal protection: | yes |
| DC motor: | no |
| Indirect drive: | no |
| Electrical connection: | Connection terminals |
| Max. Air temperature: | 70 °C |
| Motor with 2 speeds: | no |
| Suitable for electronic control: | yes |
| Suitable for frequency control: | no |
| Suitable for low current control: | no |
| Suitable for transformer control: | yes |
| Pole-changing: | no |
| Length: | 220 mm |
| Channel diameter: | 125 mm |
| Connection: | Flange |
Features
Connection voltage
230 V
Power consumption
0.042 kW
Manufacturer
HAN
5974
GTIN
4010184059745
Length
220 mm
With thermal protection
Yes
IP protection)
IP44
Housing material
Plastic
