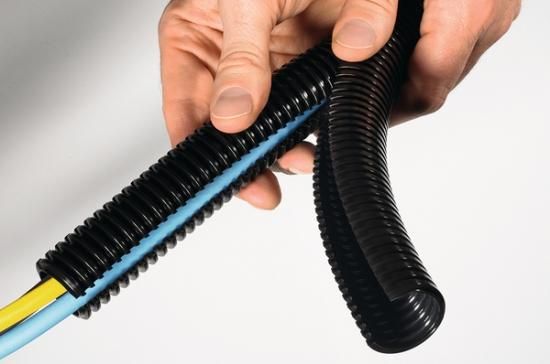

Can be reopenedThe cables are pulled in from the sideHigh abrasion resistanceHalogen, sulphur and phosphorus freeSelf-extinguishing according to IEC 61386Colour: BlackThis double-slit protective hose is used in control cabinets as well as in mechanical and plant engineering where subsequent installation is required.
| Property | Value |
| Lengthwise slotted: | yes |
| Nominal size in inches: | other |
| Lockable (two-part): | yes |
| Nominal diameter: | 54 mm |
| Inner diameter: | 44.0 mm |
| Outer diameter: | 53.3 mm |
| Operating temperature: | -40 to 120 °C |
| Fire protection according to UL 94: | other |
| Bending radius, static: | 170 mm |
| Oil resistant: | yes |
| Color: | black |
| Sheathing material: | without sheathing |
| Flame-spreading: | no |
| Halogen-free: | yes |
| Protection class (IP): | IP40 |
| Bending behavior: | flexible |
| Bending radius, dynamic: | 170 mm |
Features
Inner diameter
44.0 mm
Bending radius, static
170 mm
Bending behavior
Flexibel
Flame propagating
No
HAB
HG-DC54-PA6-BK-25M HelaGuard
Minimal order
25 meters
Manufacturer
HAN
166-11807
GTIN
4031026310848
Outer diameter
53.3 mm
Operating temperature
-40 to 120 °C
Color
Halogen free
Yes
Nominal diameter
54 mm
Nominal size in inches
Other
IP protection)
IP40
