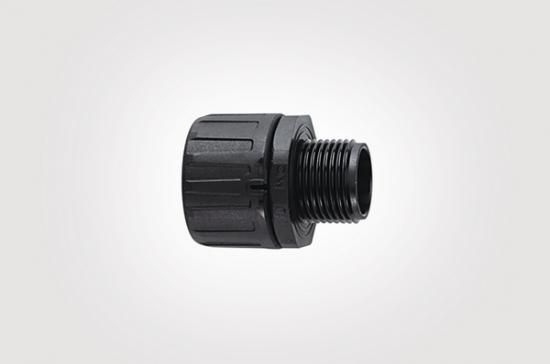

One-piece quick screw connectionHigh tensile strengthVery good resistance to solvents and oilsHalogen, sulphur and phosphorus freeMetric thread including lock nutStraight screw connection with external thread.
| Property | Value |
| Thread size: | M25 x 1.5 |
| Nominal size in inches: | other |
| Perm. in combination with protective hose according to DIN EN 61386-23: | no |
| Design: | straight |
| Rotatable thread: | no |
| Construction: | external thread |
| Connection type: | snap connection |
| Thread type: | metric |
| Thread material: | polyamide (PA) |
| Thread length: | 15 mm |
| Length: | 49 mm |
| min. Inner Ø of hose: | 19.5 mm |
| max. outer Ø of hose: | 39 mm |
| Colour: | black |
| Approved in combination with protective hose CSA: | yes |
| Approved in combination with protective hose UR: | yes |
| Approved in combination with protective hose Lloyds Register: | no |
| Nominal diameter: | 25 mm |
| Protection class (IP): | IP66 |
| Material: | Polyamide (PA) |
| Operating temperature: | -50 to 135 °C |
Features
Approved in combination with protective hose UR
Yes
Approved in combination with protective hose CSA
Yes
HAB
HG25-S-M25-PA66-BK-1 HelaGuard
Minimal order
10 pieces
Manufacturer
HAN
166-21026
GTIN
4031026310916
Version
Straight
Design
External thread
Rotating thread
No
Operating temperature
-50 to 135 °C
Color
Thread type
Metric
Length
49 mm
Nominal diameter
25 mm
Nominal size in inches
Other
IP protection)
IP66
Connection type
Snap connection
Material
Polyamide (PA)
