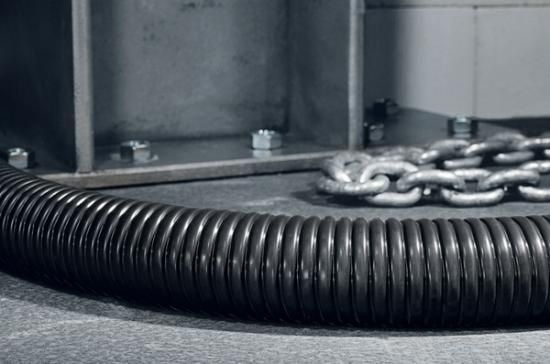

High pressure, impact and tensile strength. Highly flexible. Good resistance to alkalis, acids and chemicals. The flexible protective hose made of galvanized steel with PVC sheath is used in mechanical and plant engineering.
| Property | Value |
| Nominal diameter: | 10 mm |
| Surface: | galvanized |
| Sheathing material 1st layer: | PVC, oil-resistant |
| Sheathing material 2nd layer (outer): | without sheath |
| Nominal size in inches: | other |
| Inner diameter: | 6.8 mm |
| Outer diameter: | 10.1 mm |
| Seal: | without seal |
| Operating temperature: | -15 to 70 °C |
| Bending radius, static: | 25 mm |
| Weight: | 0.14 kg/m |
| Color: | black |
| Electrical properties: | not clarified |
| Flame propagating: | no |
| Use in Ex areas: | no |
| Material: | steel |
| Protection class (IP): | IP66 |
| Bending behavior: | flexible |
Features
Inner diameter
6.8 mm
Use in Ex area
No
Bending radius, static
25 mm
Bending behavior
Flexibel
Flame propagating
No
HAB
PCS10-GS/PVC-BK-25M HelaGuard
Minimal order
25 meters
Manufacturer
HAN
166-30710
GTIN
4031026319742
Outer diameter
10.1 mm
Operating temperature
-15 to 70 °C
Color
Weight
0.14 kg/m
Nominal diameter
10 mm
Nominal size in inches
Other
Surface
Galvanized
IP protection)
IP66
Material
Steel
