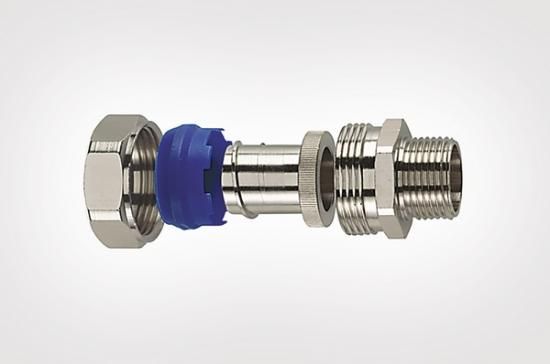

Multi-part screw connection including elastomer seal. Excellent tensile strength. Can be used to attach the hose. Rigid external thread, nickel-plated brass.
| Property | Value |
| Protection class (IP) depending on hose: | 65 |
| Nominal diameter: | 16 mm |
| Smallest inner diameter of hose: | 11.5 mm |
| Thread connection size: | PG11 |
| Total length: | 31.0 mm |
| Total height: | 24.0 mm |
| Thread length: | 10.0 mm |
| Rotatable thread: | no |
| Nominal size in inches: | other |
| Design: | straight |
| Construction: | external thread |
| One-piece: | no |
| Material of the housing: | brass |
| Surface: | nickel-plated |
| Operating temperature: | -50 to 135 °C |
| Thread number: | 1 |
| Thread type: | other |
| Type of connection of the screw connection to the housing: | thread |
Features
One-piece
No
Total height
24.0 mm
Connection type of screw connection to the housing
Thread
Smallest inner diameter of the hose
11.5 mm
Protection class (IP) depends on hose
65
Thread Number of turns
1
HAB
PCS16-FMC-PG11 HelaGuard
Minimal order
10 pieces
Manufacturer
HAN
166-31409
GTIN
4031026307534
Version
Straight
Design
External thread
Rotating thread
No
Operating temperature
-50 to 135 °C
Overall length
31.0 mm
Thread connection size
PG11
Thread type
Other
Thread length
10.0 mm
Nominal diameter
16 mm
Nominal size in inches
Other
Surface
Nickel-plated
Housing material
Brass
