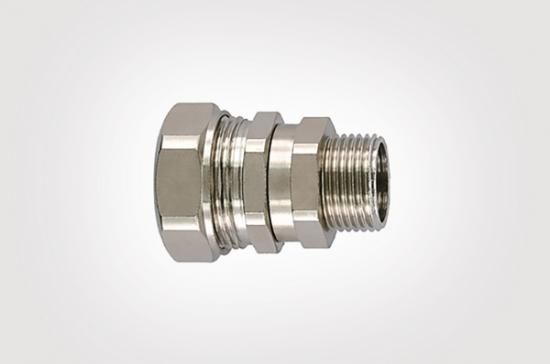

Multi-part screw connection including elastomer seal. Excellent tensile strength. Rotatable external thread. Rotating external thread, nickel-plated brass with steel ring.
| Property | Value |
| Protection class (IP) depending on hose: | 65 |
| Nominal diameter: | 32 mm |
| Smallest inner diameter of the hose: | 26 mm |
| Thread connection size: | M32 x 1.5 |
| Total length: | 56.9 mm |
| Total height: | 42 mm |
| Thread length: | 13.0 mm |
| Rotatable thread: | yes |
| Nominal size in inches: | other |
| Design: | straight |
| Design: | external thread |
| One-piece: | no |
| Material of the housing: | brass |
| Surface: | nickel-plated |
| Operating temperature: | -50 to 135 °C |
| Thread number: | 1 |
| Thread type: | metric |
| Type of screw connection to the housing: | thread |
Features
One-piece
No
Total height
42 mm
Connection type of screw connection to the housing
Thread
Smallest inner diameter of the hose
26 mm
Protection class (IP) depends on hose
65
Thread Number of turns
1
HAB
PCS32-SMC-M32-NPB/PA HelaGuard
Minimal order
2 pieces
Manufacturer
HAN
166-31505
GTIN
4031026307626
Version
Straight
Design
External thread
Rotating thread
Yes
Operating temperature
-50 to 135 °C
Overall length
56.9 mm
Thread connection size
M32x1.5
Thread type
Metric
Thread length
13.0 mm
Nominal diameter
32 mm
Nominal size in inches
Other
Surface
Nickel-plated
Housing material
Brass
