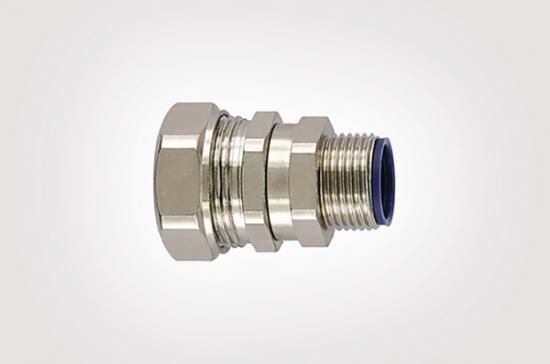

Multi-part screw connection including elastomer seal. Excellent tensile strength. Rotatable external thread. External thread, nickel-plated brass with steel ring. Complies with IP66, IP67, IP68 and IP69k.
| Property | Value |
| Protection class (IP) depending on hose: | 66 |
| Nominal diameter: | 25 mm |
| Smallest inner diameter of the hose: | 18 mm |
| Thread connection size: | M25 x 1.5 |
| Total length: | 50.7 mm |
| Total height: | 35 mm |
| Thread length: | 12.0 mm |
| Rotatable thread: | yes |
| Nominal size in inches: | 3/4 inch |
| Design: | straight |
| Design: | external thread |
| One-piece: | no |
| Material of the housing: | brass |
| Surface: | nickel-plated |
| Operating temperature: | -50 to 135 °C |
| Thread number: | 1 |
| Thread type: | metric |
| Type of screw connection to the housing: | thread |
Features
One-piece
No
Total height
35 mm
Connection type of screw connection to the housing
Thread
Smallest inner diameter of the hose
18 mm
Protection class (IP) depends on hose
66
Thread Number of turns
1
HAB
LTS25-SMC-M25-NPB/PA HelaGuard
Minimal order
10 pieces
Manufacturer
HAN
166-32304
GTIN
4031026308272
Version
Straight
Design
External thread
Rotating thread
Yes
Operating temperature
-50 to 135 °C
Overall length
50.7 mm
Thread connection size
M25x1.5
Thread type
Metric
Thread length
12.0 mm
Nominal diameter
25 mm
Nominal size in inches
3/4 inch
Surface
Nickel-plated
Housing material
Brass
